1241.6623.1121000
ActiveSCHURTER Inc.

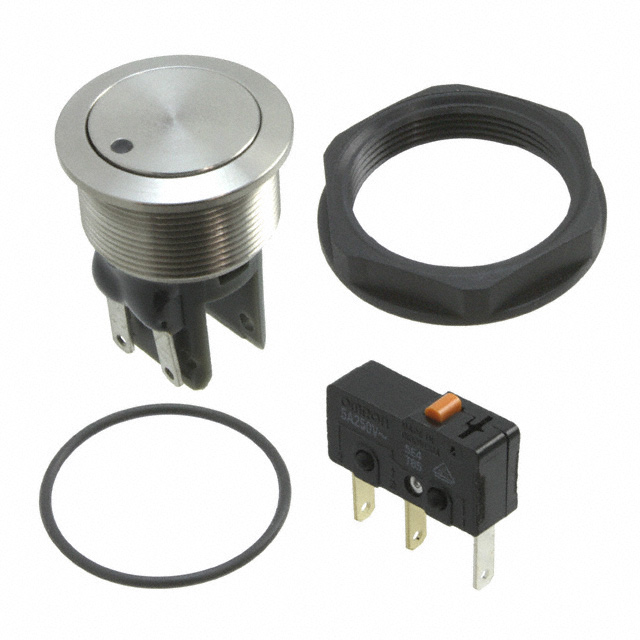

SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.6623.1121000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.6623.1121000 | 1241.6623 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 5 A | 5 - 100 mA |
| Electrical Life | 200000 Cycles | 200000 Cycles |
| Illumination Type, Color | Red, LED | LED, Green, Red |
| Illumination Voltage (Nominal) | 1.9 VDC | 1.9 - 2.1 VDC |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 1500000 Cycles | 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 19.1 mm | 19.1 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal, Illuminated | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V | 125 V |
| Voltage Rating - DC | - | 30 V |
1241.6623 Series
SWITCH PUSHBUTTON SPDT 100MA 30V
| Part | Ingress Protection | Mounting Type | Illumination Voltage (Nominal) | Actuator Marking | Voltage Rating - DC | Termination Style | Mechanical Life | Illumination Type, Color | Color - Actuator/Cap | Actuator Type | Switch Function | Current Rating (Amps) | Electrical Life | Type | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [diameter] | Circuit | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.6623.1112000 | IP40 | Panel Mount, Front | 2.1 VDC | No Marking | 30 V | Quick Connect - 0.110" (2.8mm) | 1500000 Cycles | Green, LED | Silver | Button, Flush, Round | On-Mom | 100 mA | 200000 Cycles | Anti-Vandal, Illuminated | -25 °C | 85 °C | 19.1 mm | SPDT | |
SCHURTER Inc. 1241.6623.1122000 | IP40 | Panel Mount, Front | 2.1 VDC | No Marking | Quick Connect - 0.110" (2.8mm) | 1500000 Cycles | Green, LED | Silver | Button, Flush, Round | On-Mom | 5 A | 200000 Cycles | Anti-Vandal, Illuminated | -25 °C | 85 °C | 19.1 mm | SPDT | 125 V | |
SCHURTER Inc. 1241.6623.1121000 | IP40 | Panel Mount, Front | 1.9 VDC | No Marking | Quick Connect - 0.110" (2.8mm) | 1500000 Cycles | LED, Red | Silver | Button, Flush, Round | On-Mom | 5 A | 200000 Cycles | Anti-Vandal, Illuminated | -25 °C | 85 °C | 19.1 mm | SPDT | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1241.6623 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
