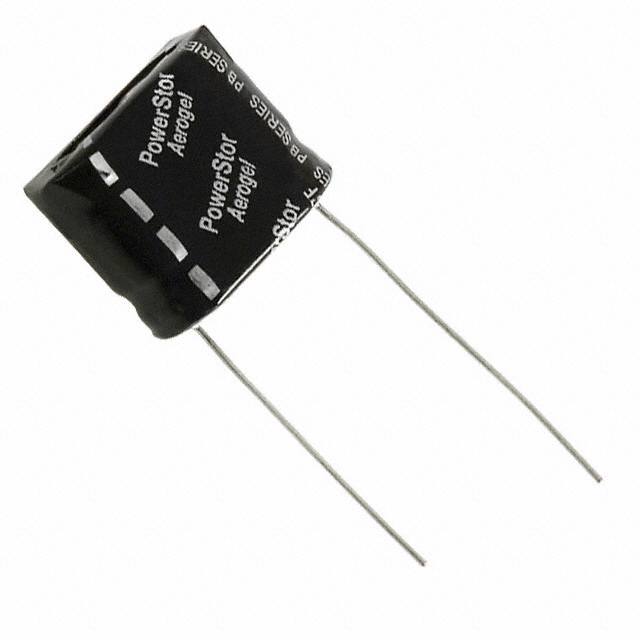

PB-5R0V474
ObsoleteEaton - Electronics Division
CAP 470MF -20% +80% 5V T/H
PB-5R0V474
ObsoleteEaton - Electronics Division
CAP 470MF -20% +80% 5V T/H
Description
General part information
PB-5R0V474
470 mF (EDLC) Supercapacitor 5 V Radial, Can 1Ohm @ 100Hz 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | PB-5R0V474 |
|---|---|
| Capacitance | 470 mF |
| ESR (Equivalent Series Resistance) | 1 Ohm |
| Height - Seated (Max) | 0.571 in |
| Lead Spacing | 0.465 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 0.681 in |
| Size / Dimension Width | 0.354 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 5 VAC |
