TS2P3F20-BP

Active

Switchcraft Inc.

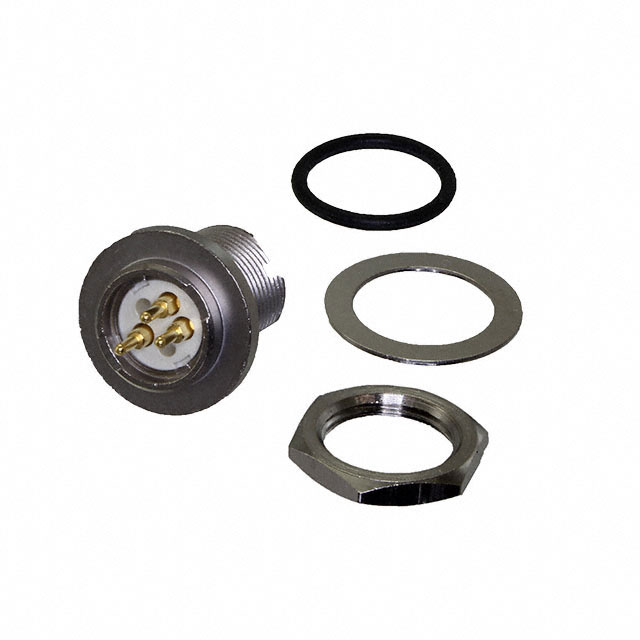

CONN RCPT FMALE 3POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 3POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TS2P3F20-BP	TS2P3F Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder, Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

CONN RCPT FMALE 3POS GOLD SOLDER

Part	Shell Finish	Shell Material	Ingress Protection	Mounting Feature	Insert Material	Contact Material	Color	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shielding	Connector Type	Applications	Contact Finish - Mating	Voltage Rating	Orientation	Termination
Switchcraft Inc. TS2P3F20-BP	Electroless Nickel	Copper Alloy	IP66, IP67, IP68	Bulkhead - Front Side Nut	Liquid Crystal Polymer (LCP)	Copper Alloy	Silver	Metal	135 °C	-40 °C	Panel Mount, Through Hole	Shielded	Receptacle, Female Sockets	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Gold	125 VAC	Keyed	Solder
Switchcraft Inc. TS2P3F20	Electroless Nickel	Copper Alloy	IP66, IP67, IP68	Bulkhead - Rear Side Nut	Liquid Crystal Polymer (LCP)	Copper Alloy	Silver	Metal	135 °C	-40 °C		Shielded	Receptacle, Female Sockets	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Gold	125 VAC	Keyed	Crimp, Solder Cup

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder
