ULN2003AD

Active

TAEJIN

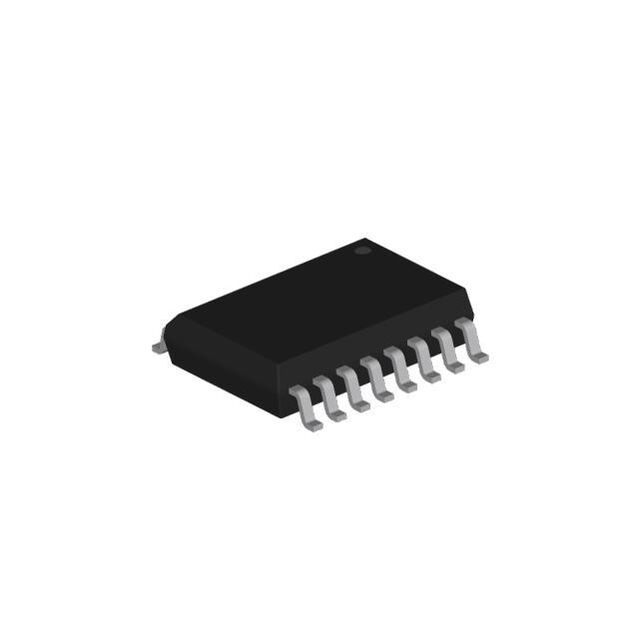

IC PWR RELAY 7NPN 1:1 SOP-16

Search across all available documentation for this part.

Active

TAEJIN

IC PWR RELAY 7NPN 1:1 SOP-16

Technical Specifications

Parameters and characteristics for this part

Specification	ULN2003AD

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	50 µA
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	16-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Supplier Device Package	16-SOP
Vce Saturation (Max) @ Ib, Ic [Max]	1.6 V
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

IC PWR RELAY 7NPN 1:1 SOP-16

Part	Package / Case	Package / Case [x]	Package / Case [y]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Vce Saturation (Max) @ Ib, Ic [Max]
TAEJIN ULN2003AD	16-SOIC	0.154 in	3.9 mm	500 mA	16-SOP	50 V	50 µA	-40 °C	125 ¯C	Surface Mount	1.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor Array Surface Mount 16-SOP
