Specification	MMSST-05-20-L-15.00-D-K-LDS

Cable Termination	Crimp
Color	Blue, Individual
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Latch Lock, Polarizing Key
Number of Positions	5
Number of Rows	1
Pitch - Connector	0.1 in
Shielding	Unshielded

MMSST Series

...

Part	Number of Rows	Color	Number of Positions	Pitch - Connector	Features	Cable Termination	Shielding	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness
Samtec Inc. MMSST-10-20-F-20.00-S-K-M	1	Blue Individual	10	0.1 in	Latch Lock Polarizing Key	Crimp	Unshielded	Socket to Individual Wire Leads	Gold	0	Flash	Flash
Samtec Inc. MMSST-02-24-F-10.00-D-K-LUS	1	Blue Individual	2	0.1 in	Latch Lock Polarizing Key	Crimp	Unshielded	Socket to Socket	Gold	0	Flash	Flash
Samtec Inc. MMSST-04-24-S-15.00-S-K	1	Blue Individual	4	0.1 in	Latch Lock Polarizing Key	Crimp	Unshielded	Socket to Individual Wire Leads	Gold	30 µin
Samtec Inc. MMSST-04-24-L-04.00-S-K	1	Blue Individual	4	0.1 in	Latch Lock Polarizing Key	Crimp	Unshielded	Socket to Individual Wire Leads	Gold	10 Ąin
Samtec Inc. MMSST-02-24-L-11.00-S-K	1	Blue Individual	2	0.1 in	Latch Lock Polarizing Key	Crimp	Unshielded	Socket to Individual Wire Leads	Gold	10 Ąin

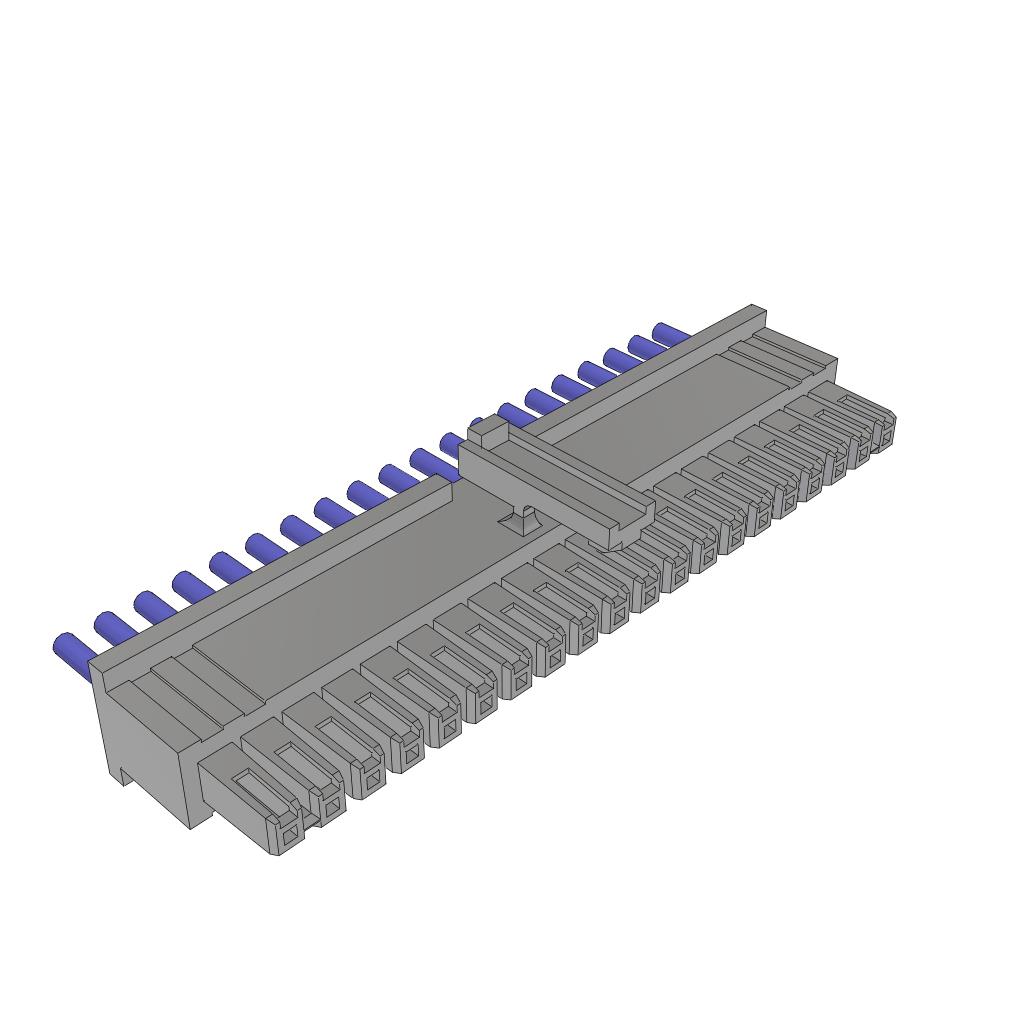

Samtec Inc. MMSST-20-24-L-09.00-S-K	1	Blue Individual	20	0.1 in	Latch Lock Polarizing Key	Crimp	Unshielded	Socket to Individual Wire Leads	Gold	10 Ąin
Samtec Inc. MMSST-10-24-L-12.00-S-K	1	Blue Individual	10	0.1 in	Latch Lock Polarizing Key	Crimp	Unshielded	Socket to Individual Wire Leads	Gold	10 Ąin
Samtec Inc. MMSST-02-20-L-30.00-S-K-M	1	Blue Individual	2	0.1 in	Latch Lock Polarizing Key	Crimp	Unshielded	Socket to Individual Wire Leads	Gold	10 Ąin
Samtec Inc. MMSST-04-24-F-40.00-S-K	1	Blue Individual	4	0.1 in	Latch Lock Polarizing Key	Crimp	Unshielded	Socket to Individual Wire Leads	Gold	0	Flash	Flash
Samtec Inc. MMSST-15-24-F-12.00-S-K	1	Blue Individual	15	0.1 in	Latch Lock Polarizing Key	Crimp	Unshielded	Socket to Individual Wire Leads	Gold	0	Flash	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MMSST-05-20-L-15.00-D-K-LDS | Datasheet

MMSST-05-20-L-15.00-D-K-LDS Datasheet (PDF)
