Description
General part information

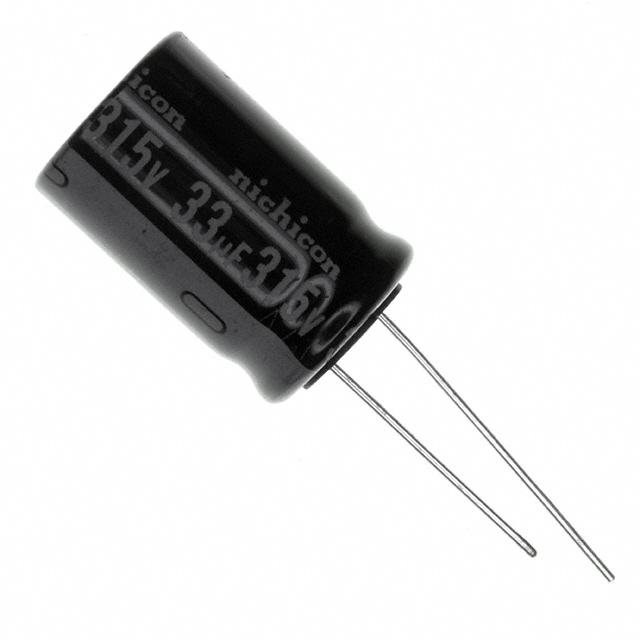

UVZ2F330MHD
33 µF 315 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UVZ2F330MHD |
|---|---|
| Applications | General Purpose |
| Capacitance | 33 µF |
| Height - Seated (Max) | 1.063 in |
| Lead Spacing | 0.295 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 195 mA, 292.5 mA |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 315 V |
