PR02FS0201009KR500
ActiveVishay Dale

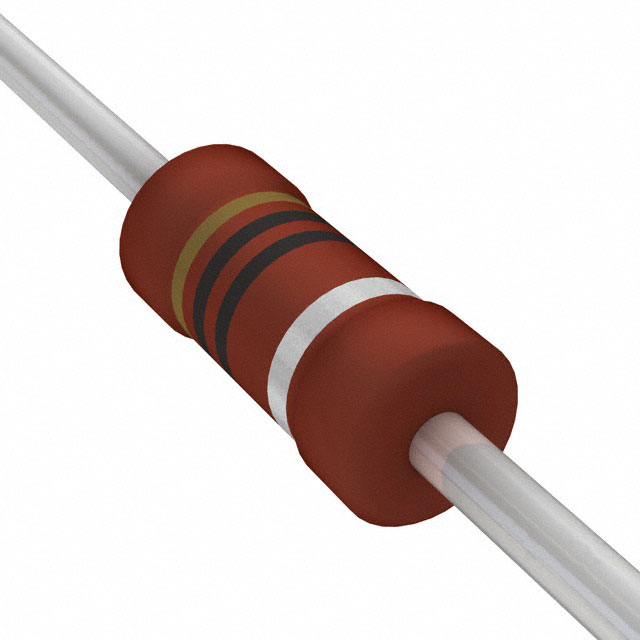

RES 10 OHM 10% 2W AXIAL
PR02FS0201009KR500
ActiveVishay Dale
RES 10 OHM 10% 2W AXIAL
Description
General part information
PR02FS0201009KR500
10 Ohms ±10% 2W Through Hole Resistor Axial Flame Proof, Fusible, Pulse Withstanding, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PR02FS0201009KR500 |
|---|---|
| Composition | Metal Film |
| Features | Pulse Withstanding, Flame Proof, Fusible, Safety |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 2 w |
| Resistance | 10 Ohms |
| Size / Dimension Diameter | 0.154 in |
| Size / Dimension Length | 0.394 in |
| Temperature Coefficient | 250 ppm/°C |
| Temperature Coefficient (Highest) | 250 ppm/°C |
| Temperature Coefficient (Lowest) | -250 ppm/°C |
| Tolerance | 10 % |
