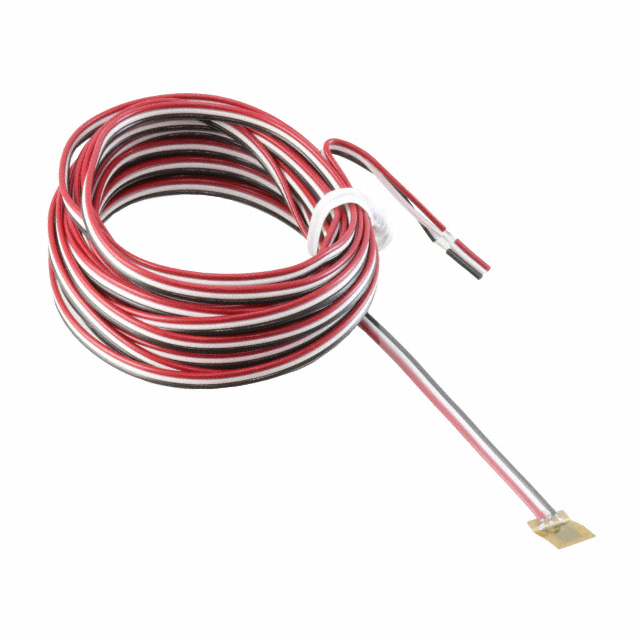

MMF404142
ActiveMicro-Measurements (Division of Vishay Precision Group)
STRAIN GAUGE 120 OHM LINEAR 10PC
MMF404142
ActiveMicro-Measurements (Division of Vishay Precision Group)
STRAIN GAUGE 120 OHM LINEAR 10PC
Description
General part information
MMF404142
Linear Strain Gauge ±3% 0.126" (3.20mm) 0.100" (2.54mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF404142 |
|---|---|
| Length - Active | 0.126 in |
| Length - Overall | 0.28 in |
| Length - Overall Pattern | 0.205 in |
| Length - Overall Pattern (mm) | 5.2 mm |
| Operating Temperature (Max) | 180 °F |
| Operating Temperature (Min) | -60 °F |
| Pattern Type | Linear |
| Resistance | 120 Ohm |
| Resistance Tolerance (%) | 0.3 % |
| Strain Range | 3 % |
| Width - Active | 0.1 in |
| Width - Overall | 0.16 in |
| Width - Overall Pattern | 0.1 in |
