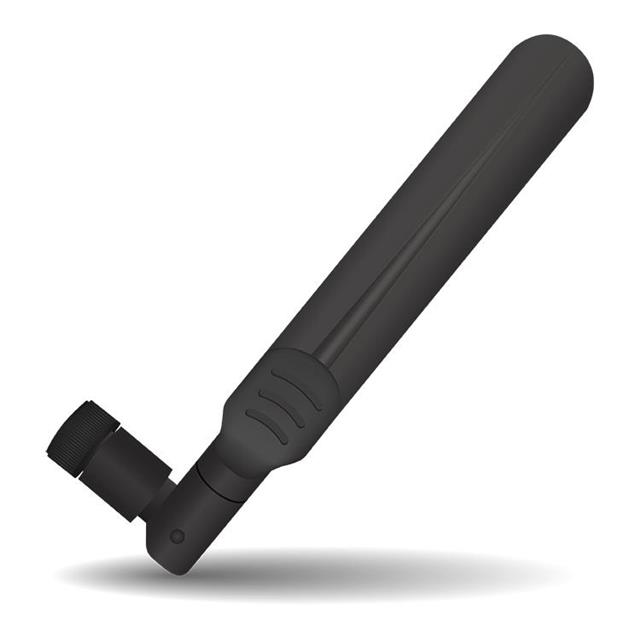

X9000294-W3DRMB

Active

KYOCERA AVX

ANTENNA, BLADE WLAN RPSMA

Search across all available documentation for this part.

Active

KYOCERA AVX

ANTENNA, BLADE WLAN RPSMA

Technical Specifications

Parameters and characteristics for this part

ANTENNA, BLADE WLAN RPSMA

Part	Antenna Type	Height (Max)	Height (Max)	Termination	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Gain	Number of Bands	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Mounting Type	Applications	Frequency (Center/Band)	Return Loss
KYOCERA AVX X9000294-W3DRMB	Tilt, Whip	157.5 mm	6.201 in	RP-SMA Male	2.485 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	802.15.4, Bluetooth, WiFi	3.2 dBi, 4.5 dBi	2	4 GHz	2 GHz	3 GHz	Connector Mount	Bluetooth, Wi-Fi, WLAN, Zigbee™	2.4425 GHz, 5.5 GHz	-12 dB, -9 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	60	$ 7.22

General part information

RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Whip, Tilt RP-SMA Male Connector Mount
