PCIT20-331M-RC
ActiveAllied Components International

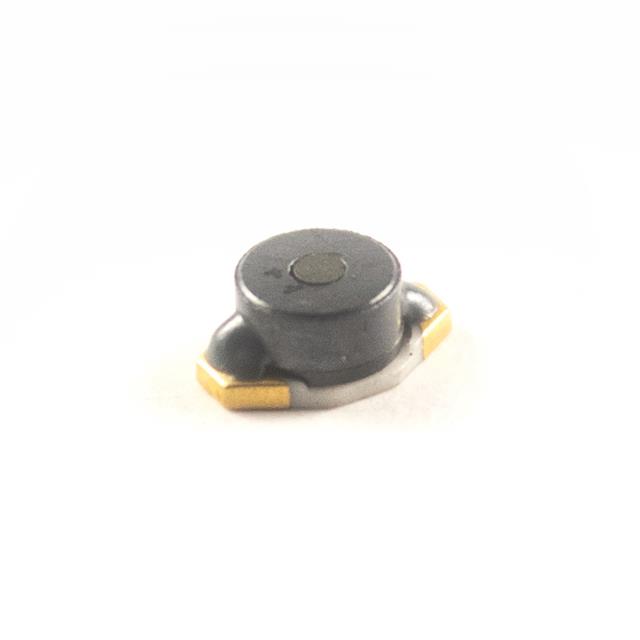

330UH +/-20% POWER CHIP INDUCTOR
PCIT20-331M-RC
ActiveAllied Components International
330UH +/-20% POWER CHIP INDUCTOR
Description
General part information
PCIT20-331M-RC
330 µH Shielded Inductor 160 mA 2.9Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PCIT20-331M-RC |
|---|---|
| Current Rating | 160 mA |
| DC Resistance (DCR) (Max) | 2.9 Ohm |
| Height - Seated (Max) | 0.115 in |
| Inductance | 330 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.26 in |
| Size / Dimension Width | 0.175 in |
| Tolerance | 20 % |
