1-1418362-1

Active

TE Connectivity AMP Connectors

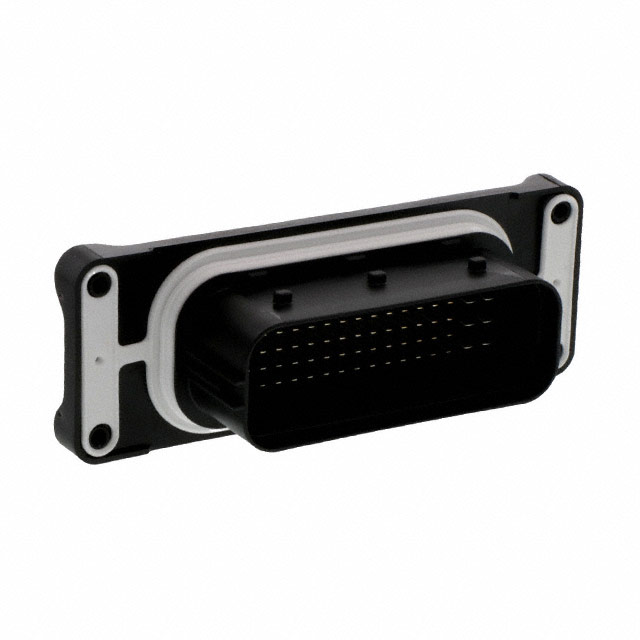

CONN HEADER VERT 62POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 62POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1418362-1	1418362 Series

Connector Type	Header	Header
Contact Finish - Mating	Silver	Silver
Contact Finish - Post	Tin	Tin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide, Mounting Flange, Sealed	Board Guide, Mounting Flange, Sealed
Insulation Color	Black	Black, Gray
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole	Through Hole
Number of Positions	62	62
Number of Positions Loaded	All	All
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

CONN HEADER VERT 62POS

Part	Contact Type	Mounting Type	Connector Type	Termination	Insulation Material	Contact Length - Mating	Contact Length - Mating	Number of Positions	Fastening Type	Insulation Color	Contact Material	Contact Shape	Features	Contact Finish - Post	Contact Finish - Mating	Style	Shrouding	Number of Positions Loaded
TE Connectivity AMP Connectors 1-1418362-1	Tab	Through Hole	Header	Solder	Polybutylene Terephthalate (PBT), Glass Filled	6.7 mm	0.264 in	62	Push-Pull	Black	Copper Alloy	Rectangular	Board Guide, Mounting Flange, Sealed	Tin	Silver	Board to Cable/Wire	Shrouded - 4 Wall	All
TE Connectivity AMP Connectors 2-1418362-1	Tab	Through Hole	Header	Solder	Polybutylene Terephthalate (PBT), Glass Filled	6.7 mm	0.264 in	62	Push-Pull	Gray	Copper Alloy	Rectangular	Board Guide, Mounting Flange, Sealed	Tin	Silver	Board to Cable/Wire	Shrouded - 4 Wall	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 62 position
