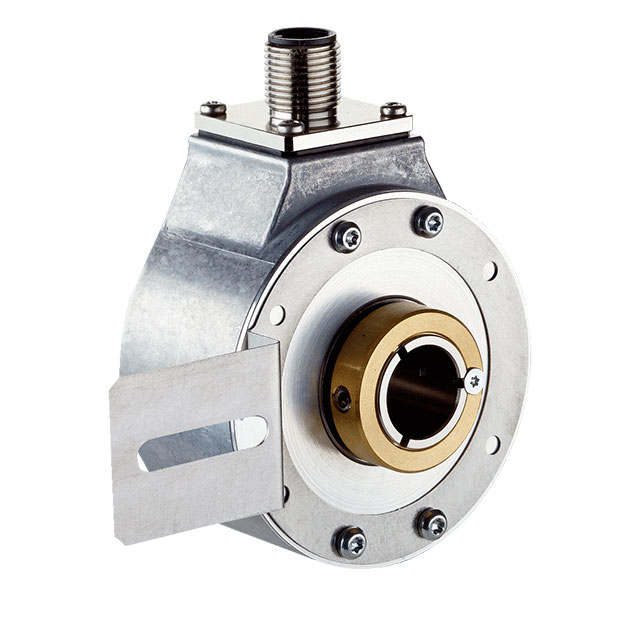

ROTARY ENCODR INCREMENT 1000PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1094795
ActiveSICK, Inc.
ROTARY ENCODR INCREMENT 1000PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1094795 |
|---|---|
| Actuator Type | Hole for Shaft |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Incremental |
| Mounting Type | Servo Mount |
| Orientation | User Selectable |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 1000 |
| Rotational Life (Cycles Min) | 3.6B |
| Termination Style | Connector |
| Voltage - Supply [Max] | 27 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 413.71 | |
| 5 | $ 388.64 | |||
| 10 | $ 373.59 | |||
| 25 | $ 342.25 | |||
Description
General part information
1094795
ROTARY ENCODR INCREMENT 1000PPR
