FAG.1B.305.CLA
ActiveLEMO

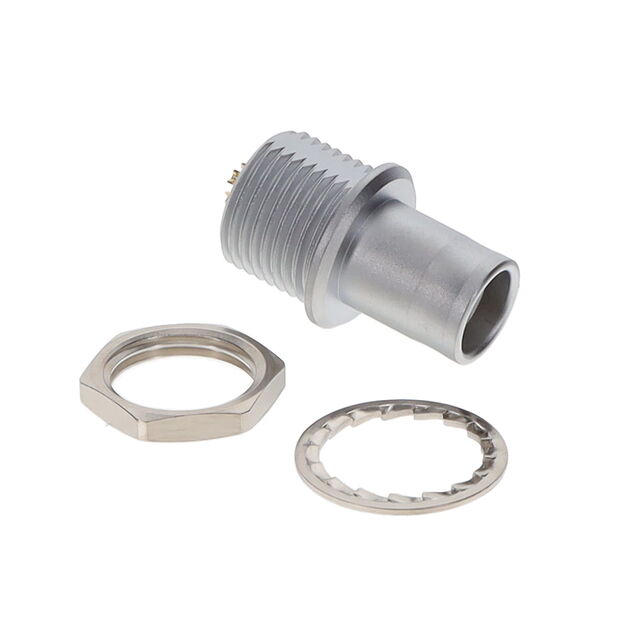

CONN PLUG MALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FAG.1B.305.CLA
ActiveLEMO
CONN PLUG MALE 5P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FAG.1B.305.CLA | FAG.1B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 9 A | 1.5 - 12 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions | - | 4 - 14 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 305 | 303 - 316 |
| Shielding | Shielded | Shielded |
| Termination | - | Solder |
FAG.1B Series
CONN PLUG MALE 3P GOLD SLDR CUP
| Part | Shell Size - Insert | Contact Finish - Mating | Material Flammability Rating | Shell Finish | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Fastening Type | Connector Type | Shielding | Primary Material | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Feature | Color | Orientation | Ingress Protection | Number of Positions | Mounting Type | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FAG.1B.303.CLA | 303 | Gold | UL94 V-0 | Chrome | Brass | 1 µm | 39.4 µin | 12 A | Push-Pull | Male Pins, Plug | Shielded | Metal | Polyetheretherketone (PEEK) | -55 °C | 250 °C | Brass | Bulkhead - Rear Side Nut | Silver | G | IP50 | ||||
LEMO FAG.1B.305.CLA | 305 | Gold | UL94 V-0 | Chrome | Brass | 1 µm | 39.4 µin | 9 A | Push-Pull | Male Pins, Plug | Shielded | Metal | Polyetheretherketone (PEEK) | -55 °C | 250 °C | Brass | Bulkhead - Rear Side Nut | Silver | G | IP50 | ||||
LEMO FAG.1B.310.CLD | 310 | Gold | UL94 V-0 | Chrome | Brass | 1 µm | 39.4 µin | 2.5 A | Push-Pull | Male Pins, Plug | Shielded | Metal | Polyetheretherketone (PEEK) | -55 °C | 250 °C | Brass | Bulkhead - Rear Side Nut | Silver | G | IP50 | 10 | Panel Mount, Through Hole | Solder | |
LEMO FAG.1B.314.CLA | 314 | Gold | UL94 V-0 | Chrome | Brass | 1 µm | 39.4 µin | 2 A | Push-Pull | Male Pins, Plug | Shielded | Metal | Polyetheretherketone (PEEK) | -55 °C | 250 °C | Brass | Bulkhead - Rear Side Nut | Silver | G | IP50 | 14 | |||
LEMO FAG.1B.304.CLA | 304 | Gold | UL94 V-0 | Chrome | Brass | 1 µm | 39.4 µin | 10 A | Push-Pull | Male Pins, Plug | Shielded | Metal | Polyetheretherketone (PEEK) | -55 °C | 250 °C | Brass | Bulkhead - Rear Side Nut | Silver | G | IP50 | 4 | |||
LEMO FAG.1B.308.CLA | 308 | Gold | UL94 V-0 | Chrome | Brass | 1 µm | 39.4 µin | 5 A | Push-Pull | Male Pins, Plug | Shielded | Metal | Polyetheretherketone (PEEK) | -55 °C | 250 °C | Brass | Bulkhead - Rear Side Nut | Silver | G | IP50 | 8 | |||
LEMO FAG.1B.316.CLA | 316 | Gold | UL94 V-0 | Chrome | Brass | 1 µm | 39.4 µin | 1.5 A | Push-Pull | Male Pins, Plug | Shielded | Metal | Polyetheretherketone (PEEK) | -55 °C | 250 °C | Brass | Bulkhead - Rear Side Nut | Silver | G | IP50 | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.09 | |
| 10 | $ 30.73 | |||
| 25 | $ 29.40 | |||
| 50 | $ 28.45 | |||
| 100 | $ 27.50 | |||
| 250 | $ 25.99 | |||
Description
General part information
FAG.1B Series
5 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
