ATS-02C-36-C2-R0

Active

Advanced Thermal Solutions Inc.

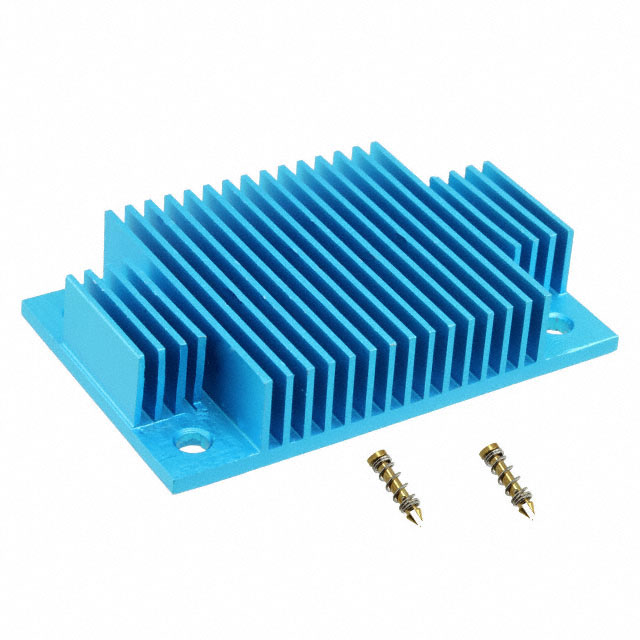

HEATSINK 36.83X57.6X11.43MM T766

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-02C-36-C2-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 36.83X57.6X11.43MM T766

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-02C-36-C2-R0	ATS-02C Series

Attachment Method	Push Pin	Push Pin
Fin Height	11.43 mm	5.84 - 35 mm
Fin Height	0.45 in	0.23 - 1.378 "
Fin Height	-	0.394 - 1.181 in
Fin Height	-	10 - 30 mm
Length	1.45 in	0.984 - 2.756 in
Length	36.83 mm	25 - 70 mm
Length	-	30 - 60 mm
Length	-	1.181 - 2.362 in
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Rectangular, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	14.82 °C/W, 100 LFM	2.17 - 100 °C/W
Type	Top Mount	Top Mount
Width	2.267 in	1.181 - 2.267 in
Width	57.6 mm	25 - 57.6 mm
Width	-	0.984 - 2.362 in
Width	-	40 - 60 mm
Width	-	50 - 70 mm
Width	-	1.45 - 2.756 in

ATS-02C Series

HEATSINK 25X25X15MM L-TAB T412

...

Part	Fin Height	Fin Height	Thermal Resistance @ Forced Air Flow	Shape	Package Cooled	Material	Width	Width [x]	Attachment Method	Material Finish	Type	Length	Length	Length [x]	Length [x]	Width	Fin Height [z]	Fin Height [z]	Width [x]	Width [y]	Width [y]
Advanced Thermal Solutions Inc. ATS-02C-44-C3-R0	0.59 "	15 mm	20.62 °C/W, 100 LFM	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	25 mm	0.984 in	Push Pin	Blue Anodized	Top Mount	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-02C-83-C2-R0			8.57 °C/W, 100 LFM	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	30 mm		Push Pin	Blue Anodized	Top Mount			30 mm	1.181 in	1.181 in	1.181 in	30 mm
Advanced Thermal Solutions Inc. ATS-02C-154-C2-R0	0.59 "	15 mm	7.51 °C/W	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum		1.575 in	Push Pin	Blue Anodized	Top Mount								40 mm
Advanced Thermal Solutions Inc. ATS-02C-120-C1-R0	0.984 in	25 mm	3.45 °C/W	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	45 mm	1.772 in	Push Pin	Blue Anodized	Top Mount	45 mm			1.772 "
Advanced Thermal Solutions Inc. ATS-02C-73-C2-R0			28.85 °C/W	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	25 mm	0.984 in	Push Pin	Blue Anodized	Top Mount	25 mm	0.984 in				0.394 in	10 mm
Advanced Thermal Solutions Inc. ATS-02C-108-C1-R1			27 °C/W	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum			Push Pin	Blue Anodized	Top Mount			50 mm	1.969 in		0.5 in	12.7 mm		50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-02C-126-C1-R0	0.59 "	15 mm	5.45 °C/W	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum		2.126 "	Push Pin	Blue Anodized	Top Mount			54 mm	2.126 "				54 mm
Advanced Thermal Solutions Inc. ATS-02C-33-C1-R0			17.4 °C/W, 100 LFM	Rectangular, Fins	ASIC, BGA, CPU, LGA	Aluminum	36.83 mm		Push Pin	Blue Anodized	Top Mount	57.9 mm	2.28 "				0.7 in	17.78 mm			1.45 "
Advanced Thermal Solutions Inc. ATS-02C-121-C1-R0			9.46 °C/W, 100 LFM	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum			Push Pin	Blue Anodized	Top Mount			50 mm	1.969 in		0.394 in	10 mm		50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-02C-88-C2-R0	0.984 in	25 mm		Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	35 mm	1.378 in	Push Pin	Blue Anodized	Top Mount			35 mm	1.378 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.95
		10	$ 5.79
		30	$ 5.66

Description

General part information

ATS-02C Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
