1624055
ActivePhoenix Contact

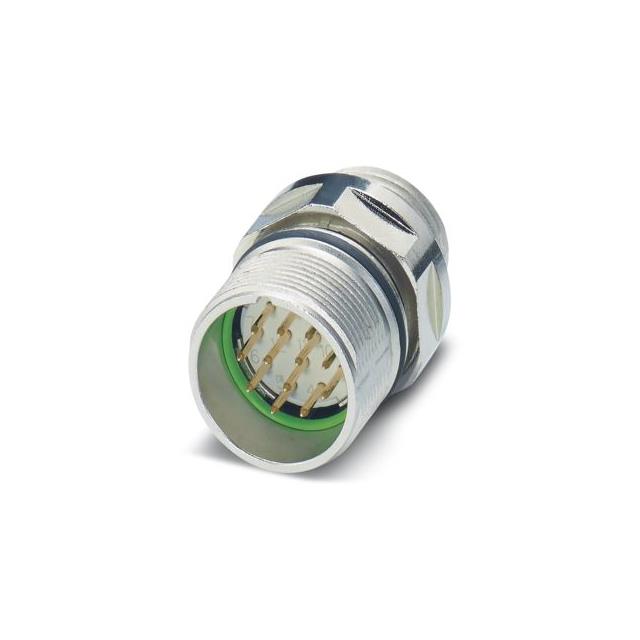

DEVICE CONNECTOR FOR FRONT WALL,
1624055
ActivePhoenix Contact
DEVICE CONNECTOR FOR FRONT WALL,
Description
General part information
1624055
17 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 1624055 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 8 A |
| Fastening Type | Push-Twist |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PBT, Polybutylene Terephthalate |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions | 17 |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23-17 |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 48 VAC |
| Voltage Rating (DC) | 74 VDC |
