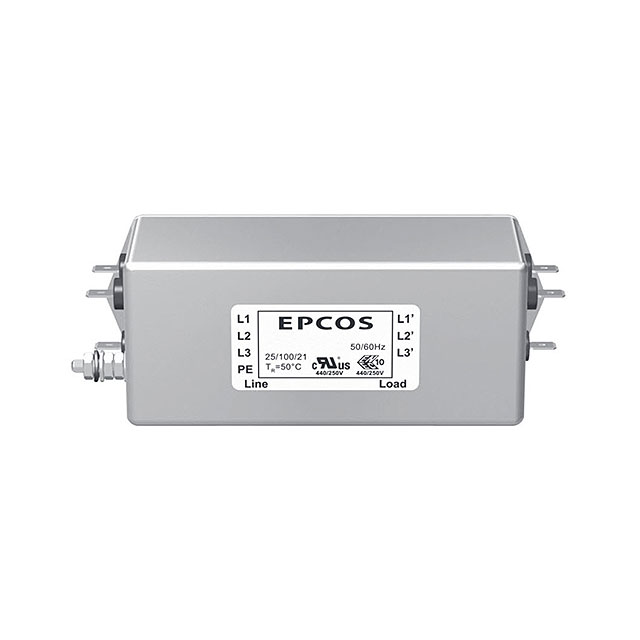

B84143A0035R166
ActiveEPCOS - TDK Electronics
LINE FILTER 35A CHASSIS MOUNT
B84143A0035R166
ActiveEPCOS - TDK Electronics
LINE FILTER 35A CHASSIS MOUNT
Description
General part information
B84143A0035R166
Three Phase (Delta) EMC/EMI Line Filter 35 A 50/60Hz Single Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | B84143A0035R166 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cUR, UR, ENEC |
| Configuration | Single Stage |
| Current | 35 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 520 V |
| Voltage - Rated AC (Phase to Phase) | 300 V |
