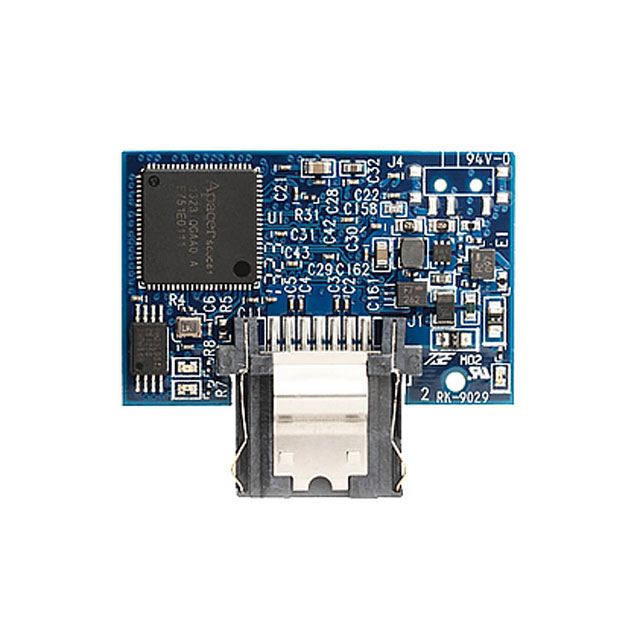

APSDM016GL3AD-AT

Obsolete

Apacer Memory America

SSD 16GB SLC SATA III 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APSDM016GL3AD-AT

Obsolete

Apacer Memory America

SSD 16GB SLC SATA III 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APSDM016 Series

Solid State Drive (SSD) FLASH - NAND (SLC) 16GB SATA III 5V

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	APSDM016GL3AD-AT	APSDM016 Series

Current - Max	-	130 - 165 mA
Current - Max [Max]	185 mA	130 - 375 mA
Form Factor	-	Disk-On-Module, SATA DOM, mSATA
Memory Size	16 GB	16 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)	Solid State Drive (SSD) FLASH - NAND (SLC), Solid State Drive (SSD) FLASH - NAND (MLC)
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Size / Dimension [x]	33 mm	2 - 58 mm
Size / Dimension [y]	29.3 mm	17 - 40 mm
Size / Dimension [z]	1 mm	1 - 17.8 mm
Speed - Read	290 MB/s	34 - 290 MB/s
Speed - Write	135 MB/s	12 - 135 MB/s
Type	SATA III	SATA III
Voltage - Supply	-	3.3 V

APSDM016 Series

SSD 16GB SATA DOM SLC SATAIII 5V

Part	Speed - Read	Memory Type	Current - Max [Max]	Speed - Write	Form Factor	Operating Temperature [Max]	Operating Temperature [Min]	Type	Memory Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Max
Apacer Memory America APSDM016GQ3AN-ATW	80 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	160 mA	75 MB/s	Disk-On-Module, SATA DOM	85 °C	-40 °C	SATA III	16 GB	15.2 mm	24 mm	52.25 mm
Apacer Memory America APSDM016GA2AN-CT	34 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	245 mA	55 MB/s	Disk-On-Module, SATA DOM	70 °C	0 °C	SATA III	16 GB	8.2 mm	27.8 mm	30 mm
Apacer Memory America APSDM016GG3AN-ATW	80 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	160 mA	75 MB/s	Disk-On-Module, SATA DOM	85 °C	-40 °C	SATA III	16 GB	15.2 mm	24 mm	58 mm
Apacer Memory America APSDM016G42AN-PTM1	215 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	175 mA	48 MB/s	Disk-On-Module, SATA DOM	70 °C	0 °C	SATA III	16 GB	1 mm	32.8 mm	45.8 mm
Apacer Memory America APSDM016GB3AN-ATW	42 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)		41 MB/s	Disk-On-Module, SATA DOM	85 °C	-40 °C	SATA III	16 GB	8.53 mm	29.4 mm	32.5 mm	130 mA
Apacer Memory America APSDM016GK2AN-CTM1	105 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)		12 MB/s	Disk-On-Module, SATA DOM	70 °C	0 °C	SATA III	16 GB	7.5 mm	19.8 mm	41.4 mm	145 mA
Apacer Memory America APSDM016GB2AN-CTW	34 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	245 mA	55 MB/s	Disk-On-Module, SATA DOM	85 °C	-40 °C	SATA III	16 GB	8.53 mm	29.4 mm	32.5 mm
Apacer Memory America APSDM016GA3AN-ATW	42 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	130 mA	41 MB/s		85 °C	-40 °C	SATA III	16 GB	8.2 mm	27.8 mm	30 mm
Apacer Memory America APSDM016G12AN-PTM1	215 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	175 mA	48 MB/s	Disk-On-Module, SATA DOM	70 °C	0 °C	SATA III	16 GB	8.35 mm	30 mm	44 mm
Apacer Memory America APSDM016GS2AN-CTW	34 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)		55 MB/s	Disk-On-Module, SATA DOM	85 °C	-40 °C	SATA III	16 GB	7.5 mm	17 mm	40 mm	165 mA
