ANT-DB1-OM-DW-01-N

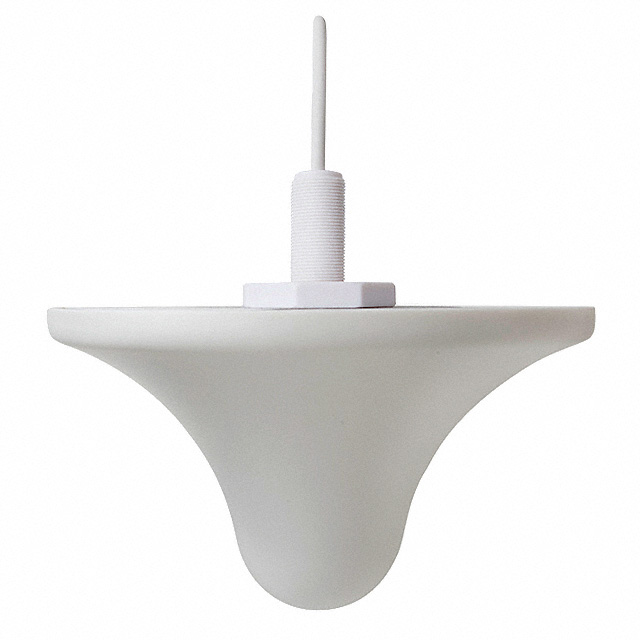

RF ANTENNA Dome N Type Female Panel Mount

Technical Specifications

Parameters and characteristics for this part

SpecificationANT-DB1-OM-DW-01-N
Antenna TypeDome
Frequency (Center/Band)2.4GHz, 1.9GHz, 5.8GHz, 910MHz, 3.5GHz
Frequency (Center/Band) - 1910 MHz
Frequency (Center/Band) - 21.9 GHz
Frequency (Center/Band) - 32.4 GHz
Frequency (Center/Band) - 43.5 GHz
Frequency (Center/Band) - 55.8 GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum960 MHz
Frequency Range (Band 1) Minimum860 MHz
Frequency Range (Band 2) Maximum2 GHz
Frequency Range (Band 2) Minimum1.7 GHz
Frequency Range (Band 3) Maximum2.48 GHz
Frequency Range (Band 3) Minimum2.4 GHz
Frequency Range (Band 4) Maximum3.6 GHz
Frequency Range (Band 4) Minimum3.4 GHz
Frequency Range (Band 5) Maximum5.88 GHz
Frequency Range (Band 5) Minimum5.72 GHz
Gain1 dBi, 4 dBi, 2.5 dBi, 2 dBi
Height (Max)3.622 in
Mounting TypePanel Mount
Number of Bands5
Power - Max100 VA
TerminationN Type Female
VSWR1.5
