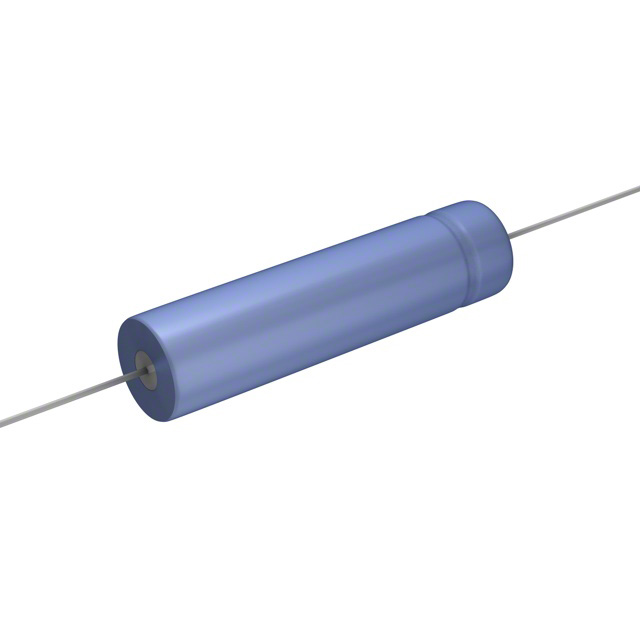

NLW250-25
ObsoleteCornell Dubilier Knowles
CAP ALUM 250UF 25V AXIAL TH
NLW250-25
ObsoleteCornell Dubilier Knowles
CAP ALUM 250UF 25V AXIAL TH
Description
General part information
NLW250-25
250 µF 25 V Aluminum Electrolytic Capacitors Axial, Can 1.06Ohm @ 120Hz 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | NLW250-25 |
|---|---|
| Applications | General Purpose |
| Capacitance | 250 µF |
| ESR (Equivalent Series Resistance) | 1.06 Ohm |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 400 mA, 460 mA |
| Size / Dimension Diameter | 0.4 in |
| Size / Dimension Length | 1.57 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 25 VAC |
