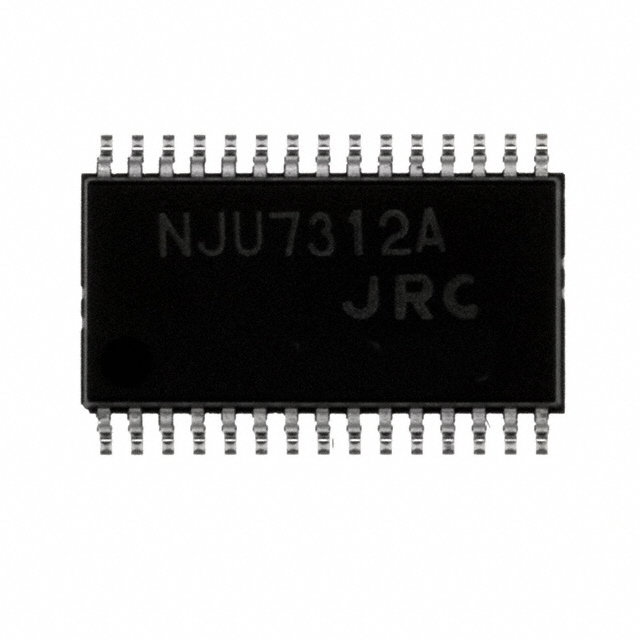

NJU7312AM
ObsoleteNisshinbo Micro Devices Inc.
IC SWITCH DUAL DPST 30DMP
NJU7312AM
ObsoleteNisshinbo Micro Devices Inc.
IC SWITCH DUAL DPST 30DMP
Description
General part information
NJU7312AM
Audio Switch IC Channel 30-SDMP
Technical Specifications
Parameters and characteristics for this part
| Specification | NJU7312AM |
|---|---|
| Applications | Audio |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) | 200 Ohm |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 30-DMP |
| Package Name | 30-SDMP |
| Voltage - Supply, Dual (Maximum) | 16 V |
| Voltage - Supply, Dual (Minimum) | -8 V |
| Voltage - Supply, Dual (Nominal) | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
