XS112B3PCL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 4MM, PNP, M12 X 1, 12V TO 24V, XS SERIES
XS112B3PCL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 4MM, PNP, M12 X 1, 12V TO 24V, XS SERIES
Description
General part information
XS112B3PCL2

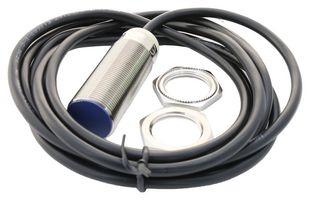

Inductive Proximity Sensor 0.157" (4mm) IP65, IP67 Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | XS112B3PCL2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP65, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NC, NO, 4-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.157 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
