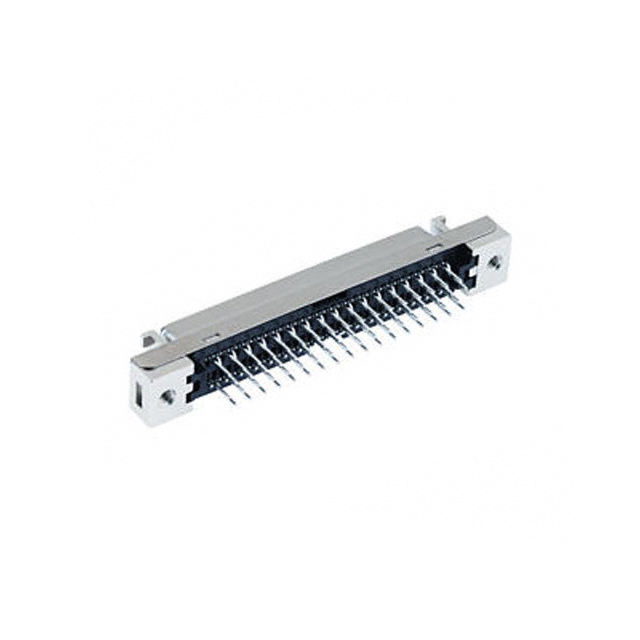

102A0-6212PC
Active3M
D SUB CONNECTOR, 100 CONTACTS, RECEPTACLE, SOLDER, MDR 102 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
102A0-6212PC
Active3M
D SUB CONNECTOR, 100 CONTACTS, RECEPTACLE, SOLDER, MDR 102 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 102A0-6212PC | 102A0 Series |
|---|---|---|
| - | - | |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Receptacle, Stacked |
| Connector Type | - | 2 Plugs |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.51 - 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 20 - 30 Áin |
| Features | Shielded | Shielded |
| Flange Feature | Housing/Shell | Housing/Shell |
| Flange Feature | 2.6 M | 2.6 M |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 100 | 100 |
| Number of Rows | 2 | 2 |
| Termination | Solder | Solder |
102A0 Series
MINI D RIBBON 100 CONTACT
| Part | Mounting Type | Number of Positions | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Termination | Features | Connector Type | Flange Feature | Flange Feature | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panel Mount, Through Hole | 100 | Gold | 2 | 0.76 Ám | 30 Áin | Outer Shroud Contacts | Solder | Shielded | Receptacle | Housing/Shell | 2.6 M | ||
Panel Mount, Through Hole | 100 | Gold | 2 | 0.76 Ám | 30 Áin | Outer Shroud Contacts | Solder | Shielded | Receptacle | Housing/Shell | 2.6 M | ||
Panel Mount, Through Hole | 100 | Gold | 2 | 0.76 Ám | 30 Áin | Outer Shroud Contacts | Solder | Shielded | Receptacle | Housing/Shell | 2.6 M | ||
Panel Mount, Right Angle, Through Hole | 100 | Gold | 2 | 0.51 µm | 20 µin | Outer Shroud Contacts | Solder | Shielded | Stacked | Housing/Shell | 2.6 M | 2 Plugs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
102A0 Series
The 102 series 0.05-inch Mini D Ribbon (MDR) Connector with board-mount thru-hole right angle shielded receptacle. It has copper alloy contact with 30-micro-inch minimum gold wiping area, nickel under-plate plating and glass reinforced polyester insulation.
