42-00004
ObsoleteMcGill Microwave Systems
CONN PLUG FMALE 4P SPRING TYPE
42-00004
ObsoleteMcGill Microwave Systems
CONN PLUG FMALE 4P SPRING TYPE
Description
General part information
42-00004

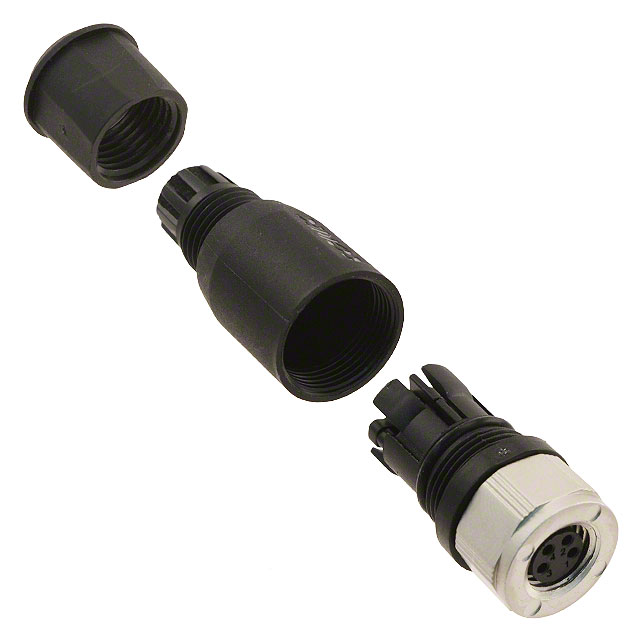

4 Position Circular Connector Plug, Female Sockets Spring Type
Technical Specifications
Parameters and characteristics for this part
| Specification | 42-00004 |
|---|---|
| Backshell Material, Plating | Polyamide (PA6), Nylon 6, Glass Filled |
| Cable Opening (Max) | 0.217 in |
| Cable Opening (Min) | 0.157 in |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 3 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Glass Filled, Nylon 6, PA6, Polyamide |
| Material Flammability Rating | UL94 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M8-4 |
| Shielding | Unshielded |
| Termination | Spring Type |
| Voltage Rating | 30 V |
