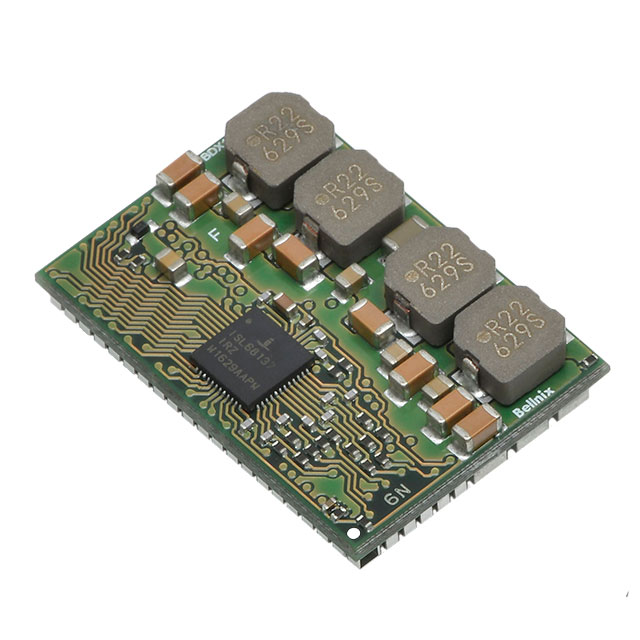

BDX12-1.0S100RM

Active

Bellnix Co., Ltd.

DC DC CONVERTER 1V

Search across all available documentation for this part.

Active

Bellnix Co., Ltd.

DC DC CONVERTER 1V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BDX12-1.0S100RM	BDX12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active High, Enable
Current - Output (Max) [Max]	100 A	50 - 100 A
Efficiency	89 %	89 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	41-SMD Module	41-SMD Module, 20-SMD Module
Size / Dimension [x]	1.29 in	1.06 - 1.29 in
Size / Dimension [x]	32.8 mm	27 - 32.8 mm
Size / Dimension [y]	23 mm	16.5 - 23 mm
Size / Dimension [y]	0.91 in	0.65 - 0.91 in
Size / Dimension [z]	0.28 "	0.16 - 0.28 "
Size / Dimension [z]	7 mm	4 - 7 mm
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	8 V	8 V
Voltage - Output 1	1 V	1 V

DC DC CONVERTER 1V

Part	Current - Output (Max) [Max]	Features	Voltage - Input (Min) [Min]	Efficiency	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Voltage - Input (Max) [Max]	Control Features	Applications	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1
Bellnix Co., Ltd. BDX12-1.0S100RM	100 A	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	8 V	89 %	Non-Isolated PoL Module, Digital	23 mm	1.29 in	0.91 in	0.28 "	32.8 mm	7 mm	41-SMD Module	14 V	Active High, Enable	ITE (Commercial)	1	Surface Mount	85 °C	-40 °C	1 V
Bellnix Co., Ltd. BDX12-1.0S50R0S	50 A	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	8 V	89 %	Non-Isolated PoL Module, Digital	16.5 mm	1.06 "	0.65 in	0.16 in	27 mm	4 mm	20-SMD Module	14 V	Active High, Enable	ITE (Commercial)	1	Surface Mount	85 °C	-40 °C	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 81.34

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 1V 100A 8V - 14V Input
