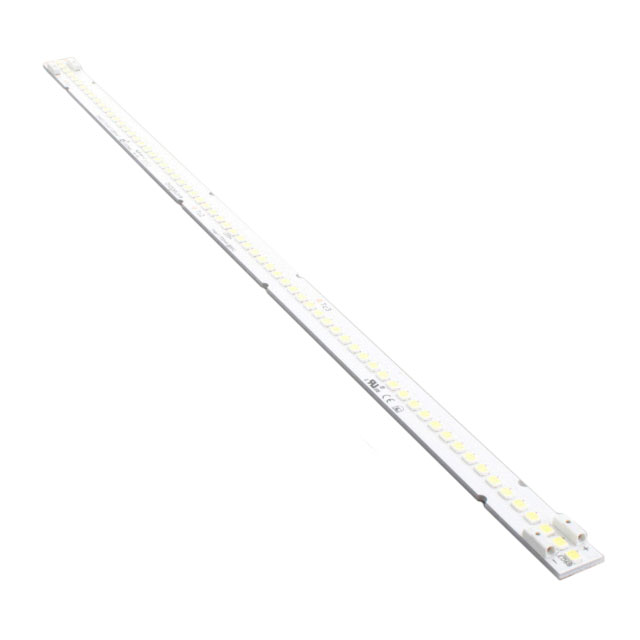

BXEB-L0340U-50E0750-C-C3

Active

BRIDGELUX

LED MOD EB SER WH LNR STRP 5000K

Search across all available documentation for this part.

Active

BRIDGELUX

LED MOD EB SER WH LNR STRP 5000K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module EB Series™ Slim Gen 3 White, Cool Linear Light Strip

Technical documentation and resources

Specification	BXEB-L0340U-50E0750-C-C3	BXEB-L0340 Series

CCT (K)	-	3000 - 4000 K
Color	Cool, White	Cool, White, Neutral, Warm
Configuration	Linear Light Strip	Linear Light Strip
CRI (Color Rendering Index)	80	80
Current - Max [Max]	1.7 A	1.7 A
Features	With Connector	With Connector
Height [z]	4.3 mm	4.3 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	200 lm/W	186 - 200 lm/W
Luminous Flux @ Current/Temperature	1530 lm	1425 - 1530 lm
Size / Dimension [x]	340 mm	340 mm
Size / Dimension [y]	0.5 in	0.5 in
Type	LED Module	LED Module
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	10.9 V	10.9 V

Part	Lens Type	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Type	CRI (Color Rendering Index)	Height [z]	Current - Max [Max]	Features	Color	Configuration	CCT (K)
BRIDGELUX BXEB-L0340U-50E0750-C-C3	Flat	1530 lm	10.9 V	120 °	200 lm/W	0.5 in	340 mm	LED Module	80	4.3 mm	1.7 A	With Connector	Cool, White	Linear Light Strip
BRIDGELUX BXEB-L0340U-40E0750-C-C3	Flat	1530 lm	10.9 V	120 °	200 lm/W	0.5 in	340 mm	LED Module	80	4.3 mm	1.7 A	With Connector	Neutral, White	Linear Light Strip	4000 K
BRIDGELUX BXEB-L0340U-35E0750-C-C3	Flat	1425 lm	10.9 V	120 °	186 lm/W	0.5 in	340 mm	LED Module	80	4.3 mm	1.7 A	With Connector	Warm, White	Linear Light Strip	3500 K
BRIDGELUX BXEB-L0340U-30E0750-C-C3	Flat	1425 lm	10.9 V	120 °	186 lm/W	0.5 in	340 mm	LED Module	80	4.3 mm	1.7 A	With Connector	Warm, White	Linear Light Strip	3000 K
