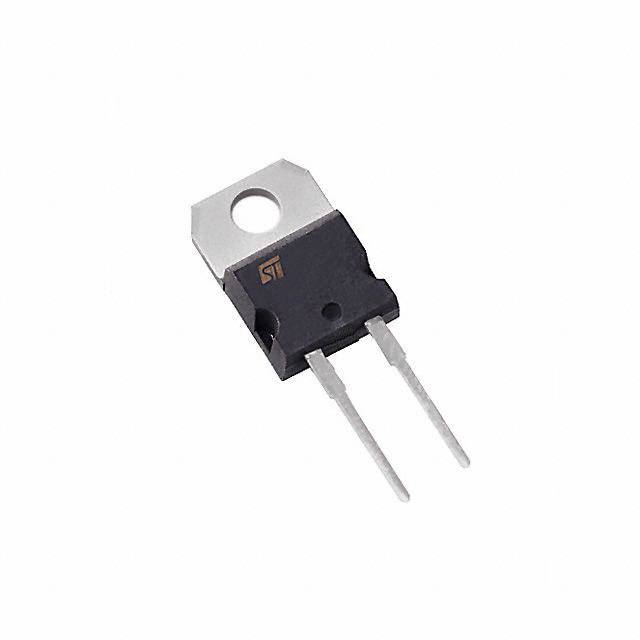

BYT12PI-1000RG
ActiveSTMicroelectronics
DIODE STD 1000V 12A TO220AC ISOL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BYT12PI-1000RG
ActiveSTMicroelectronics
DIODE STD 1000V 12A TO220AC ISOL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BYT12PI-1000RG |
|---|---|
| Current - Average Rectified (Io) | 12 A |
| Current - Reverse Leakage @ Vr | 50 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | TO-220-2 Isolated Tab |
| Reverse Recovery Time (trr) | 155 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO220AC Isolated |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BYT12 Series
DIODE STD 1000V 12A TO220AC ISOL
| Part | Package / Case | Voltage - DC Reverse (Vr) (Max) [Max] | Supplier Device Package | Reverse Recovery Time (trr) | Voltage - Forward (Vf) (Max) @ If | Current - Average Rectified (Io) | Technology | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Current - Reverse Leakage @ Vr | Mounting Type | Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics BYT12PI-1000RG | TO-220-2 Isolated Tab | 1000 V | TO220AC Isolated | 155 ns | 1.9 V | 12 A | Standard | 150 °C | -40 °C | 50 µA | Through Hole | 200 mA, 500 ns |
Description
General part information
BYT12 Series
Diode 1000 V 12A Through Hole TO220AC Isolated
