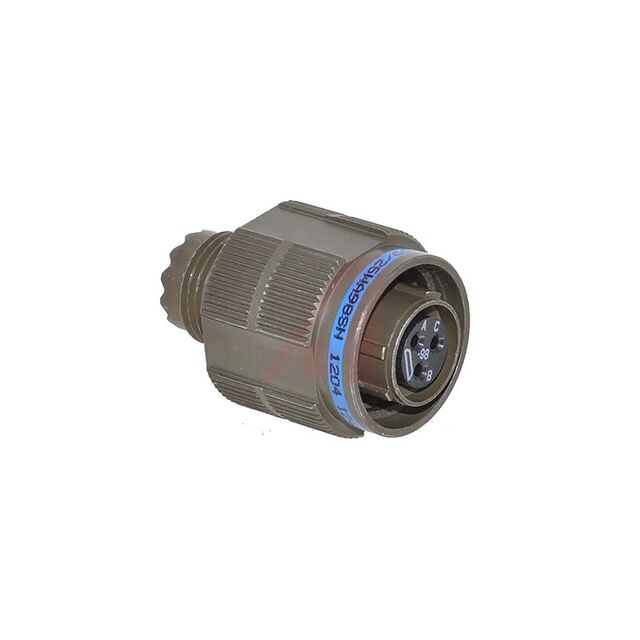

D38999/20KA35SA

Active

Corsair

D38999 SER III RECEPTACLE

Search across all available documentation for this part.

Active

Corsair

D38999 SER III RECEPTACLE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D38999/20KA35SA	D38999/20KA Series

Applications	Aerospace, Aviation, Military	Aerospace, Aviation, Military
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets, Receptacle Housing
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	-	Circular
Contact Size	-	20
Contact Type	-	Crimp
Current Rating (Amps)	5 A	5 A
Features	-	Firewall Usage
Grade	Military	Military
Housing Color	-	Silver
Ingress Protection	Waterproof	Waterproof, Environment Resistant
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Note	-	Contacts Not Included
Number of Positions	6	6
Operating Temperature [Max]	125 °C	125 - 200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	N, A
Primary Material	Metal	Metal
Qualification	MIL-DTL-38999 Series III	MIL-DTL-38999 Series III
Shell Finish	Passivated	Passivated
Shell Material	Stainless Steel	Stainless Steel
Shell Size - Insert [Max]	35	35
Shell Size - Insert [Min]	9	9
Shell Size, MIL	A	A
Shielding	Shielded	Shielded, Unshielded
Termination	Crimp	Crimp
Type	-	For Male Pins

D38999 SER III RECEPTACLE

Part	Features	Material Flammability Rating	Contact Finish - Mating	Shielding	Shell Material	Grade	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Shell Size, MIL	Contact Material	Ingress Protection	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Color	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Applications	Primary Material	Connector Type	Mounting Feature	Qualification	Number of Positions	Current Rating (Amps)	Housing Color	Note	Contact Shape	Type	Contact Type	Contact Size
Corsair D38999/20KA35PN	Firewall Usage	UL94 V-0	Gold	Shielded	Stainless Steel	Military	N	1.27 µm	50 µin	Passivated	A	Copper Alloy	Waterproof	Thermoplastic	125 °C	-65 ░C	Crimp	Silver	9	35	Aerospace, Aviation, Military	Metal	Male Pins, Receptacle	Flange	MIL-DTL-38999 Series III	6	5 A
Corsair D38999/20KA35SA		UL94 V-0	Gold	Shielded	Stainless Steel	Military	A	1.27 µm	50 µin	Passivated	A	Copper Alloy	Waterproof	Thermoplastic	125 °C	-65 ░C	Crimp	Silver	9	35	Aerospace, Aviation, Military	Metal	Receptacle, Female Sockets	Flange	MIL-DTL-38999 Series III	6	5 A
Corsair D38999/20KA98PAL	Firewall Usage			Unshielded	Stainless Steel	Military	A			Passivated	A		Environment Resistant	Thermoplastic	200 °C	-65 ░C							Receptacle Housing	Flange	MIL-DTL-38999 Series III			Silver	Contacts Not Included	Circular	For Male Pins	Crimp	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Circular Connector Receptacle, Female Sockets Crimp
