1379219-1

Active

TE Connectivity AMP Connectors

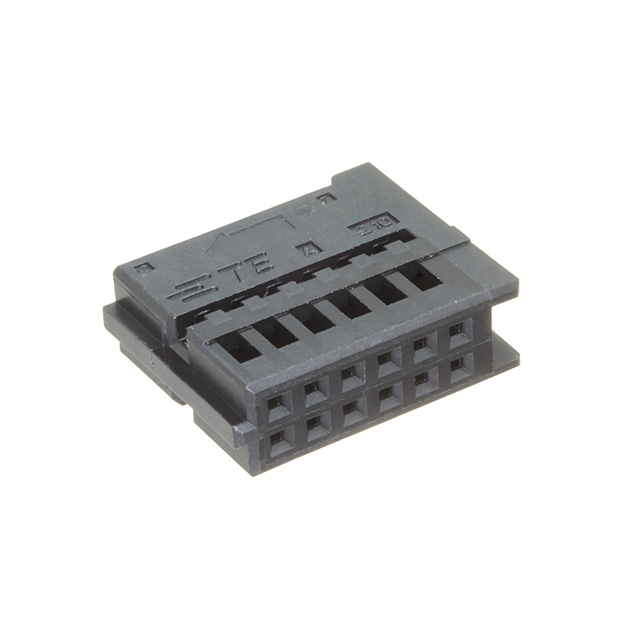

CONN RCPT HSG 12POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 12POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1379219-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

CONN RCPT HSG 12POS 2.54MM

Part	Mounting Type	Connector Type	Fastening Type	Insulation Material	Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Row Spacing [x]	Row Spacing	Contact Termination	Number of Rows	Number of Positions	Note
TE Connectivity AMP Connectors 1379219-1	Free Hanging (In-Line)	Receptacle	Locking Ramp	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	2.54 mm	0.1 in	100 °C	-40 °C	Black	0.1 in	2.54 mm	Crimp	2	12	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Technical documentation and resources

No documents available
