EV0361510000G

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 3POS STR 10.16MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EV0361510000G

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 3POS STR 10.16MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EV0361510000G	EV Series

Color	Green	Green
Contact Material	Copper	Copper
Contact Mating Finish	Tin	Tin
Current - IEC	76 A	76 A
Current - UL	55 A	55 A
Features	Mating Flange	Mating Flange
Housing Material	Thermoplastic	Thermoplastic
Insulation Height	1.024 "	1.024 "
Insulation Height	26.01 mm	26.01 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	4 - 12
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	10.16 mm	10.16 mm
Pitch [x]	0.4 in	0.4 in
Positions Per Level	3	3 - 12
Screw Size	M4.5	M4.5
Termination Style	Screw	Screw
Torque - Screw	1.18 Nm	1.18 Nm
Torque - Screw	10.4 Lb-In	10.4 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	1 kV	1 kV
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	20 AWG	20 AWG
Wire Gauge or Range - AWG [Min]	6 AWG	6 AWG
Wire Gauge or Range - mm˛ [Max]	16 mm˛	16 mm˛
Wire Gauge or Range - mm˛ [Min]	0.5 mm˛	0.5 mm˛
Wire Gauge or Range - mm²	-	0.5 mm²
Wire Gauge or Range - mm²	-	16 mm²
Wire Strip Length [Max]	14 mm	14 mm
Wire Strip Length [Min]	13 mm	13 mm

EV Series

TERM BLOCK PLUG 4POS STR 10.16MM

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - IEC	Type	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Contact Mating Finish	Wire Strip Length [Max]	Wire Strip Length [Min]	Mounting Type	Number of Positions	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Housing Material	Current - UL	Voltage - UL	Number of Levels	Current - IEC	Positions Per Level	Torque - Screw	Torque - Screw	Color	Features	Screw Size	Insulation Height	Insulation Height	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
AMPHENOL ANYTEK EV0461510000G	20 AWG	6 AWG	1 kV	Plug, Female Sockets	Copper	UL94 V-0	-40 °C	115 °C	10.16 mm	0.4 in	Tin	14 mm	13 mm	Free Hanging (In-Line)	4	Screw	0.5 mm²	16 mm²	Thermoplastic	55 A	300 V	1	76 A	4	1.18 Nm	10.4 Lb-In	Green	Mating Flange	M4.5	1.024 "	26.01 mm
AMPHENOL ANYTEK EV0861510000G	20 AWG	6 AWG	1 kV	Plug, Female Sockets	Copper	UL94 V-0	-40 °C	115 °C	10.16 mm	0.4 in	Tin	14 mm	13 mm	Free Hanging (In-Line)	8	Screw	0.5 mm²	16 mm²	Thermoplastic	55 A	300 V	1	76 A	8	1.18 Nm	10.4 Lb-In	Green	Mating Flange	M4.5	1.024 "	26.01 mm
AMPHENOL ANYTEK EV0561500000G	20 AWG	6 AWG	1 kV	Plug, Female Sockets	Copper	UL94 V-0	-40 °C	115 °C	10.16 mm	0.4 in	Tin	14 mm	13 mm	Free Hanging (In-Line)		Screw	0.5 mm²	16 mm²	Thermoplastic	55 A	300 V	1	76 A	5	1.18 Nm	10.4 Lb-In	Green		M4.5	1.024 "	26.01 mm
AMPHENOL ANYTEK EV1061500000G	20 AWG	6 AWG	1 kV	Plug, Female Sockets	Copper	UL94 V-0	-40 °C	115 °C	10.16 mm	0.4 in	Tin	14 mm	13 mm	Free Hanging (In-Line)	10	Screw	0.5 mm²	16 mm²	Thermoplastic	55 A	300 V	1	76 A	10	1.18 Nm	10.4 Lb-In	Green		M4.5	1.024 "	26.01 mm
AMPHENOL ANYTEK EV0961510000G	20 AWG	6 AWG	1 kV	Plug, Female Sockets	Copper	UL94 V-0	-40 °C	115 °C	10.16 mm	0.4 in	Tin	14 mm	13 mm	Free Hanging (In-Line)	9	Screw	0.5 mm²	16 mm²	Thermoplastic	55 A	300 V	1	76 A	9	1.18 Nm	10.4 Lb-In	Green	Mating Flange	M4.5	1.024 "	26.01 mm
AMPHENOL ANYTEK EV1061510000G	20 AWG	6 AWG	1 kV	Plug, Female Sockets	Copper	UL94 V-0	-40 °C	115 °C	10.16 mm	0.4 in	Tin	14 mm	13 mm	Free Hanging (In-Line)	10	Screw	0.5 mm²	16 mm²	Thermoplastic	55 A	300 V	1	76 A	10	1.18 Nm	10.4 Lb-In	Green	Mating Flange	M4.5	1.024 "	26.01 mm
AMPHENOL ANYTEK EV1261500000G	20 AWG	6 AWG	1 kV	Plug, Female Sockets	Copper	UL94 V-0	-40 °C	115 °C	10.16 mm	0.4 in	Tin	14 mm	13 mm	Free Hanging (In-Line)	12	Screw	0.5 mm²	16 mm²	Thermoplastic	55 A	300 V	1	76 A	12	1.18 Nm	10.4 Lb-In	Green		M4.5	1.024 "	26.01 mm
AMPHENOL ANYTEK EV1161500000G	20 AWG	6 AWG	1 kV	Plug, Female Sockets	Copper	UL94 V-0	-40 °C	115 °C	10.16 mm	0.4 in	Tin	14 mm	13 mm	Free Hanging (In-Line)	11	Screw	0.5 mm²	16 mm²	Thermoplastic	55 A	300 V	1	76 A	11	1.18 Nm	10.4 Lb-In	Green		M4.5	1.024 "	26.01 mm
AMPHENOL ANYTEK EV0361510000G	20 AWG	6 AWG	1 kV	Plug, Female Sockets	Copper	UL94 V-0	-40 °C	115 °C	10.16 mm	0.4 in	Tin	14 mm	13 mm	Free Hanging (In-Line)		Screw			Thermoplastic	55 A	300 V	1	76 A	3	1.18 Nm	10.4 Lb-In	Green	Mating Flange	M4.5	1.024 "	26.01 mm	16 mm˛	0.5 mm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.90
		10	$ 3.73
		100	$ 3.04
		1992	$ 2.20

Description

General part information

EV Series

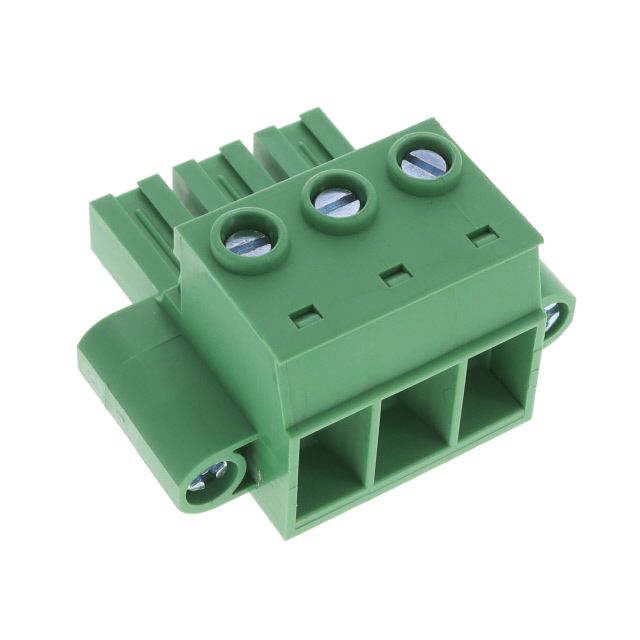

3 Position Terminal Block Plug, Female Sockets 0.400" (10.16mm) 180° Free Hanging (In-Line)
