TSL0709RA-2R2M3R7-PF
ObsoleteTDK Corporation
FIXED IND 2.2UH 3.7A 11 MOHM TH
TSL0709RA-2R2M3R7-PF
ObsoleteTDK Corporation
FIXED IND 2.2UH 3.7A 11 MOHM TH
Description
General part information
TSL0709RA-2R2M3R7-PF

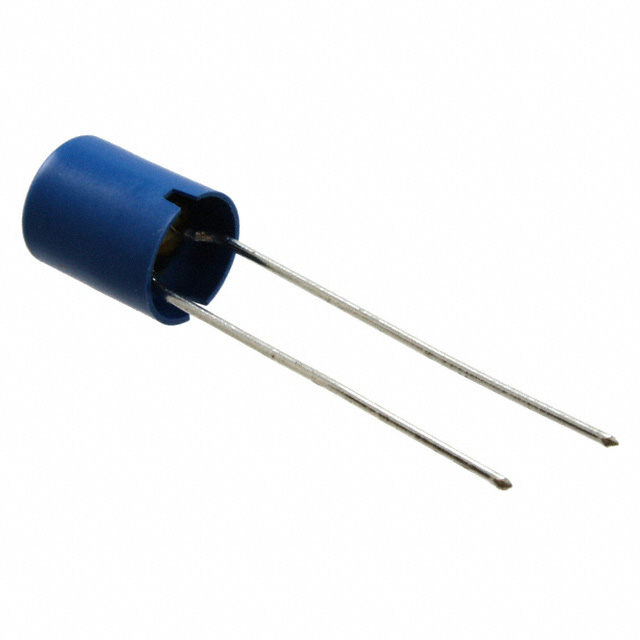

2.2 µH Unshielded Inductor 3.7 A 11mOhm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | TSL0709RA-2R2M3R7-PF |
|---|---|
| Current - Saturation (Isat) | 4 A |
| Current Rating | 3.7 A |
| DC Resistance (DCR) (Max) | 11 mOhm |
| Frequency - Self Resonant | 45 MHz |
| Height - Seated (Max) | 0.378 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 10 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.303 in |
| Tolerance | 20 % |
