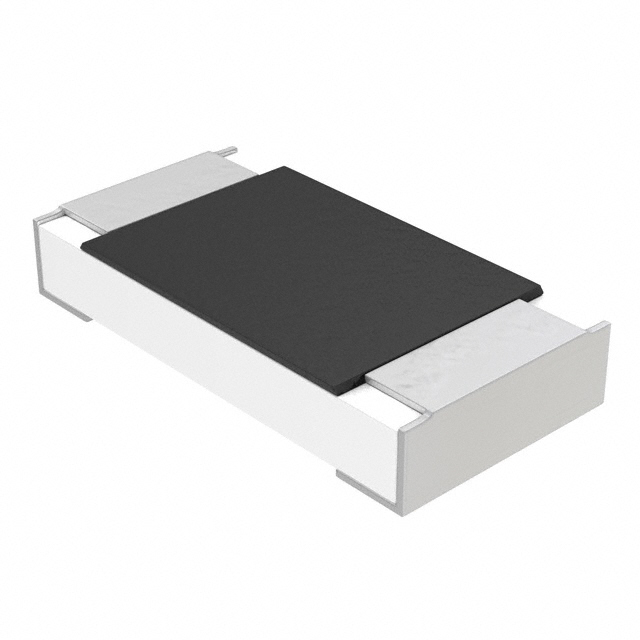

MCA12060C1009FP500

Active

Vishay Beyschlag/Draloric/BC Components

RES 10 OHM 1% 1/4W 1206

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MCA12060C1009FP500

Active

Vishay Beyschlag/Draloric/BC Components

RES 10 OHM 1% 1/4W 1206

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MCA12060C1009FP500	MCA1206 Series

Composition	Thin Film	Thin Film
Features	Anti-Sulfur	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max) [Max]	0.026 in	0.026 in
Height - Seated (Max) [Max]	0.65 mm	0.65 mm
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	125 - 347 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Power (Watts)	0.25 W	0.25 W
Power (Watts)	250 mW	250 mW
Ratings	-	AEC-Q200
Resistance	10 Ohms	1 - 750000 Ohms
Size / Dimension [x]	0.126 "	0.126 "
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	1206	1206
Temperature Coefficient	50 ppm/°C	10 - 50 ppm/°C
Tolerance	1 %	0.1 - 1 %

MCA1206 Series

RES 100 OHM 0.1% 1/4W 1206

...

Part	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Tolerance	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Power (Watts)	Power (Watts)	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Number of Terminations
Vishay Beyschlag/Draloric/BC Components MCA12060D1000BP100	100 Ohms	-55 °C	125 °C	25 ppm/°C	0.1 %	Thin Film	0.026 in	0.65 mm	1206 (3216 Metric)	0.25 W	250 mW	1206	0.063 in	1.6 mm	0.126 "	3.2 mm	Anti-Sulfur	2
Vishay Beyschlag/Draloric/BC Components MCA12060D5760BP500	576 Ohms	-55 °C	125 °C	25 ppm/°C	0.1 %	Thin Film	0.026 in	0.65 mm	1206 (3216 Metric)	0.25 W	250 mW	1206	0.063 in	1.6 mm	0.126 "	3.2 mm	Anti-Sulfur	2
Vishay Beyschlag/Draloric/BC Components MCA12060D6492BP500	64.9 kOhms	-55 °C	125 °C	25 ppm/°C	0.1 %	Thin Film	0.026 in	0.65 mm	1206 (3216 Metric)	0.25 W	250 mW	1206	0.063 in	1.6 mm	0.126 "	3.2 mm	Anti-Sulfur	2
Vishay Beyschlag/Draloric/BC Components MCA12060D1961BP100	1.96 kOhms	-55 °C	125 °C	25 ppm/°C	0.1 %	Thin Film	0.026 in	0.65 mm	1206 (3216 Metric)	0.25 W	250 mW	1206	0.063 in	1.6 mm	0.126 "	3.2 mm	Anti-Sulfur	2
Vishay Beyschlag/Draloric/BC Components MCA12060E1213BP100		-55 °C	125 °C	15 ppm/°C	0.1 %	Thin Film	0.026 in	0.65 mm	1206 (3216 Metric)	0.25 W	250 mW	1206	0.063 in	1.6 mm	0.126 "	3.2 mm	Anti-Sulfur	2
Vishay Beyschlag/Draloric/BC Components MCA12060D1211BP100	1.21 kOhms	-55 °C	125 °C	25 ppm/°C	0.1 %	Thin Film	0.026 in	0.65 mm	1206 (3216 Metric)	0.25 W	250 mW	1206	0.063 in	1.6 mm	0.126 "	3.2 mm	Anti-Sulfur	2
Vishay Beyschlag/Draloric/BC Components MCA12060D6981BP500	6.98 kOhms	-55 °C	125 °C	25 ppm/°C	0.1 %	Thin Film	0.026 in	0.65 mm	1206 (3216 Metric)	0.25 W	250 mW	1206	0.063 in	1.6 mm	0.126 "	3.2 mm	Anti-Sulfur	2
Vishay Beyschlag/Draloric/BC Components MCA12060E1504BP100	1.5 MOhms	-55 °C	125 °C	15 ppm/°C	0.1 %	Thin Film	0.026 in	0.65 mm	1206 (3216 Metric)	0.25 W	250 mW	1206	0.063 in	1.6 mm	0.126 "	3.2 mm	Anti-Sulfur	2
Vishay Beyschlag/Draloric/BC Components MCA12060D7321BP500	7.32 kOhms	-55 °C	125 °C	25 ppm/°C	0.1 %	Thin Film	0.026 in	0.65 mm	1206 (3216 Metric)	0.25 W	250 mW	1206	0.063 in	1.6 mm	0.126 "	3.2 mm	Anti-Sulfur	2
Vishay Beyschlag/Draloric/BC Components MCA12060D1804BP100	1.8 MOhms	-55 °C	125 °C	25 ppm/°C	0.1 %	Thin Film	0.026 in	0.65 mm	1206 (3216 Metric)	0.25 W	250 mW	1206	0.063 in	1.6 mm	0.126 "	3.2 mm	Anti-Sulfur	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.43
		10	$ 0.31
		50	$ 0.24
		100	$ 0.21
		500	$ 0.16
		1000	$ 0.14
	Digi-Reel®	1	$ 0.43
		10	$ 0.31
		50	$ 0.24
		100	$ 0.21
		500	$ 0.16
		1000	$ 0.14
	Tape & Reel (TR)	5000	$ 0.12

Description

General part information

MCA1206 Series

10 Ohms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Anti-Sulfur Thin Film

Documents

Technical documentation and resources
