PAT-03-HC-B-20-S-9

Active

FiberSource, Inc

LCU-SCU SM 2MM YELLOW SIMPLEX 3M

Search across all available documentation for this part.

Active

FiberSource, Inc

LCU-SCU SM 2MM YELLOW SIMPLEX 3M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

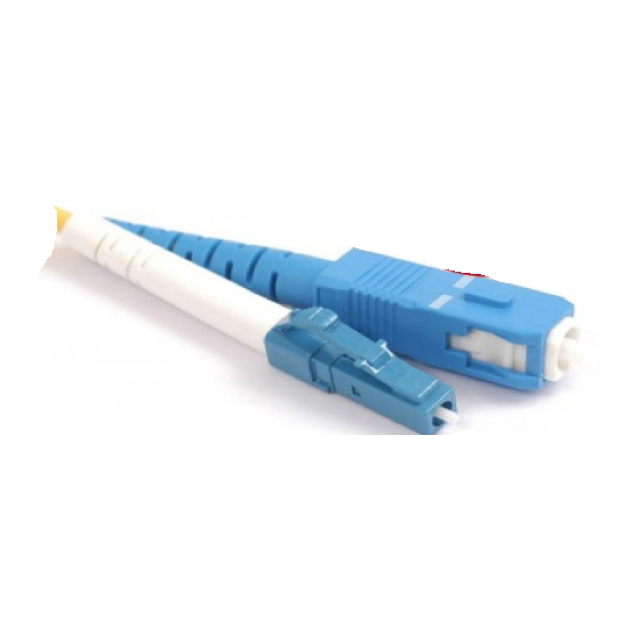

Cable Fiber Optic LC/UPC To SC/UPC 9.8' (3.0m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PAT-03-HC-B-20-S-9	PAT-03 Series

1st Connector	LC/UPC	LC/UPC, LC Duplex, SC Duplex, LC/APC
2nd Connector	SC/UPC	SC/APC, LC Duplex, SC Duplex, SC/UPC
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Color - Cable	Yellow	Yellow
Color - Connectors	-	Blue
Fiber Type	-	50/125
Insertion Loss	0.2 dB	0.2 - 0.3 dB
Length - Overall [x]	3 m	3 m
Length - Overall [x]	9.8 ft	9.8 ft
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Return Loss	65 dB, 55 dB	55 - 65 dB
Type	Singlemode, Simplex	Singlemode, Duplex, Simplex, OM3, Multimode

LCU-SCA SM 2MM YELLOW DUPLEX 3M

Part	Color - Cable	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	Length - Overall [x]	Length - Overall [x]	Cable Diameter [diameter]	Cable Diameter [diameter]	2nd Connector	Return Loss	Color - Connectors	Type	1st Connector	Fiber Type
FiberSource, Inc PAT-03-HD-B-20-D-9	Yellow	0.3 dB	85 °C	-40 °C	3 m	9.8 ft	2 mm	0.08 in	SC/APC	65 dB	Blue	Duplex, Singlemode	LC/UPC
FiberSource, Inc PAT-03-HH-B-20-D-9	Yellow	0.3 dB	85 °C	-40 °C	3 m	9.8 ft	2 mm	0.08 in	LC Duplex	55 dB	Blue	Duplex, Singlemode	LC Duplex
FiberSource, Inc PAT-03-DC-B-20-D-9	Yellow	0.3 dB	85 °C	-40 °C	3 m	9.8 ft	2 mm	0.08 in	SC Duplex	65 dB	Blue	Duplex, Singlemode	SC Duplex
FiberSource, Inc PAT-03-HC-B-20-S-9	Yellow	0.2 dB	85 °C	-40 °C	3 m	9.8 ft	2 mm	0.08 in	SC/UPC	55 dB, 65 dB		Simplex, Singlemode	LC/UPC
FiberSource, Inc PAT-03-CC-B-20-D-9	Yellow	0.3 dB	85 °C	-40 °C	3 m	9.8 ft	2 mm	0.08 in	SC Duplex	55 dB	Blue	Duplex, Singlemode	SC Duplex
FiberSource, Inc PAT-03-JD-B-20-D-9	Yellow	0.3 dB	85 °C	-40 °C	3 m	9.8 ft	2 mm	0.08 in	SC/APC	65 dB	Blue	Duplex, Singlemode	LC/APC
FiberSource, Inc PAT-03-DD-B-20-D-9	Yellow	0.3 dB	85 °C	-40 °C	3 m	9.8 ft	2 mm	0.08 in	SC Duplex	65 dB	Blue	Duplex, Singlemode	SC Duplex
FiberSource, Inc PAT-03-NN-F-20-D-A			85 °C	-40 °C	3 m	9.8 ft	2 mm	0.08 in	LC Duplex		Blue	Duplex, Multimode, OM3	LC Duplex	50/125
FiberSource, Inc PAT-03-NL-F-20-D-A			85 °C	-40 °C	3 m	9.8 ft	2 mm	0.08 in	SC Duplex		Blue	Duplex, Multimode, OM3	LC Duplex	50/125
FiberSource, Inc PAT-03-HC-B-20-D-9	Yellow	0.3 dB	85 °C	-40 °C	3 m	9.8 ft	2 mm	0.08 in	SC/UPC	55 dB	Blue	Duplex, Singlemode	LC/UPC
