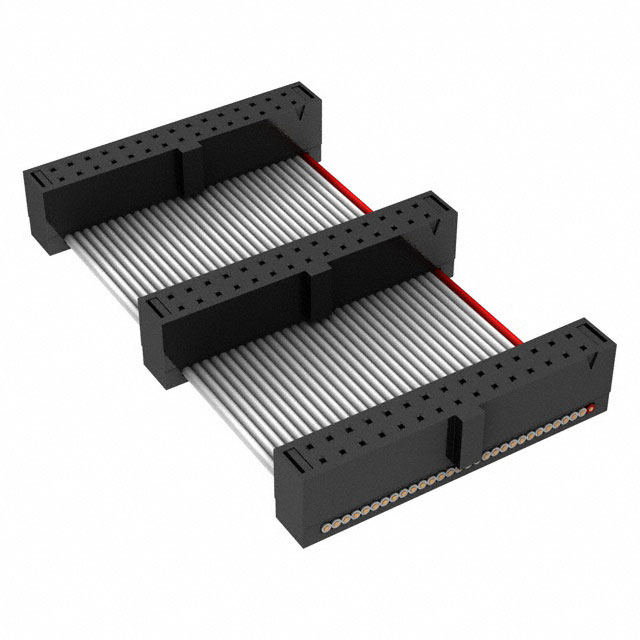

FFSD-15-D-120.00-01-N-D60

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-15-D-120.00-01-N-D60

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-15-D-120.00-01-N-D60

Cable Termination	IDC
Connector Type	Socket to Socket (3)
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Reverse Wiring
Length [x]	3.05 m
Length [x]	10 ft
Number of Positions	30
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-15 Series

...

Part	Contact Finish	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch - Cable [x]	Pitch - Cable	Number of Positions	Connector Type	Length	Length	Number of Rows	Cable Termination	Shielding	Length [x]	Length [x]	Length [x]	Length
Samtec Inc. FFSD-15-D-108.0-01-N	Gold	0.05 in	1.27 mm	10 Áin	0.25 Ám	Polarizing Key	0.025 in	0.64 mm	30	Socket to Socket	2.74 m	9 '	2	IDC	Unshielded
Samtec Inc. FFSD-15-S-28.00-01-N	Gold	0.05 in	1.27 mm	10 Áin	0.25 Ám	Polarizing Key	0.025 in	0.64 mm	30	Socket to Cable	711.2 mm	2.33 '	2	IDC	Unshielded
Samtec Inc. FFSD-15-D-120.00-01-N-D60	Gold	0.05 in	1.27 mm	10 Áin	0.25 Ám	Polarizing Key Reverse Wiring	0.025 in	0.64 mm	30	Socket to Socket (3)			2	IDC	Unshielded	3.05 m	10 ft
Samtec Inc. FFSD-15-D-05.00-01-N-SR	Gold	0.05 in	1.27 mm	10 Áin	0.25 Ám	Polarizing Key Strain Relief	0.025 in	0.64 mm	30	Socket to Socket			2	IDC	Unshielded	127 mm	0.417 '	5 "
Samtec Inc. FFSD-15-D-05.00-01-N-RN1	Gold	0.05 in	1.27 mm	10 Áin	0.25 Ám	Polarizing Key	0.025 in	0.64 mm	30	Socket to Socket			2	IDC	Unshielded	127 mm	0.417 '	5 "
Samtec Inc. FFSD-15-D-04.80-01-N	Gold	0.05 in	1.27 mm	10 Áin	0.25 Ám	Polarizing Key	0.025 in	0.64 mm	30	Socket to Socket	121.92 mm	0.4 '	2	IDC	Unshielded				4.8 "
Samtec Inc. FFSD-15-S-20.00-01-N	Gold	0.05 in	1.27 mm	10 Áin	0.25 Ám	Polarizing Key	0.025 in	0.64 mm	30	Socket to Cable	508 mm	1.67 ft	2	IDC	Unshielded
Samtec Inc. FFSD-15-D-30.70-01-N	Gold	0.05 in	1.27 mm	10 Áin	0.25 Ám	Polarizing Key	0.025 in	0.64 mm	30	Socket to Socket	779.78 mm	2.56 ft	2	IDC	Unshielded
Samtec Inc. FFSD-15-D-03.50-01-N	Gold	0.05 in	1.27 mm	10 Áin	0.25 Ám	Polarizing Key	0.025 in	0.64 mm	30	Socket to Socket			2	IDC	Unshielded	88.9 mm	0.292 ft	3.5 "
Samtec Inc. FFSD-15-D-07.00-01-N	Gold	0.05 in	1.27 mm	10 Áin	0.25 Ám	Polarizing Key	0.025 in	0.64 mm	30	Socket to Socket	177.8 mm	0.583 ft	2	IDC	Unshielded				7 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 96.85

Description

General part information

FFSD-15 Series

30 Position Cable Assembly Rectangular Socket to Socket (3) 10.0' (3.05m)
