LCM-S04002DSF
ActiveLumex Opto/Components Inc.

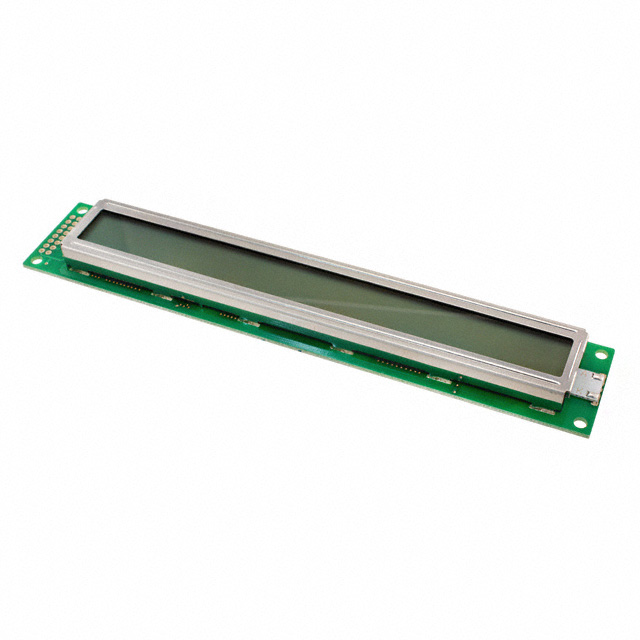

LCD MOD 80DIG 40X2 TRANS YLW/GRN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCM-S04002DSF
ActiveLumex Opto/Components Inc.
LCD MOD 80DIG 40X2 TRANS YLW/GRN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LCM-S04002DSF | LCM-S04002 Series |
|---|---|---|
| Background Color | Green | Green |
| Backlight | - | Without Backlight |
| Character Format [x] | 5 Dots | 5 Dots |
| Character Format [y] | 8 Dots | 8 Dots |
| Character Size [y] | 3.2 mm | 3.2 mm |
| Character Size [z] | 5.55 mm | 5.55 mm |
| Display Format [x] | 40 | 40 |
| Display Format [y] | 2 | 2 |
| Display Mode | Transflective | Transflective, Reflective |
| Display Type | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic |
| Dot Size [custom] | 0.65 mm | 0.65 mm |
| Dot Size [custom] | 0.6 mm | 0.6 mm |
| Interface | Parallel | Parallel |
| Number of Characters | 80 | 80 |
| Outline L x W x H [x] | 182 mm | 182 mm |
| Outline L x W x H [y] | 33.5 mm | 33.5 mm |
| Outline L x W x H [z] | 12.7 mm | 8.8 - 12.7 mm |
| Viewing Area [x] | 154 mm | 154 mm |
| Viewing Area [y] | 15.3 mm | 15.3 mm |
LCM-S04002 Series
LCD MOD 80DIG 40X2 TRANS YLW/GRN
| Part | Number of Characters | Dot Size [custom] | Dot Size [custom] | Background Color | Viewing Area [x] | Viewing Area [y] | Character Format [y] | Character Format [x] | Display Mode | Display Format [y] | Display Format [x] | Display Type | Interface | Outline L x W x H [y] | Outline L x W x H [z] | Outline L x W x H [x] | Character Size [z] | Character Size [y] | Backlight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. LCM-S04002DSF | 80 | 0.65 mm | 0.6 mm | Green | 154 mm | 15.3 mm | 8 Dots | 5 Dots | Transflective | 2 | 40 | STN - Super-Twisted Nematic | Parallel | 33.5 mm | 12.7 mm | 182 mm | 5.55 mm | 3.2 mm | |
Lumex Opto/Components Inc. LCM-S04002DSR | 80 | 0.65 mm | 0.6 mm | 154 mm | 15.3 mm | 8 Dots | 5 Dots | Reflective | 2 | 40 | STN - Super-Twisted Nematic | Parallel | 33.5 mm | 8.8 mm | 182 mm | 5.55 mm | 3.2 mm | Without Backlight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.69 | |
| 15 | $ 25.39 | |||
Description
General part information
LCM-S04002 Series
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 182.00mm x 33.50mm x 12.70mm
Documents
Technical documentation and resources
