MAX13054AESHLD#

Active

Analog Devices Inc./Maxim Integrated

EVAL MAX13054 CAN TRANSCEIVER

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL MAX13054 CAN TRANSCEIVER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 138.51

General part information

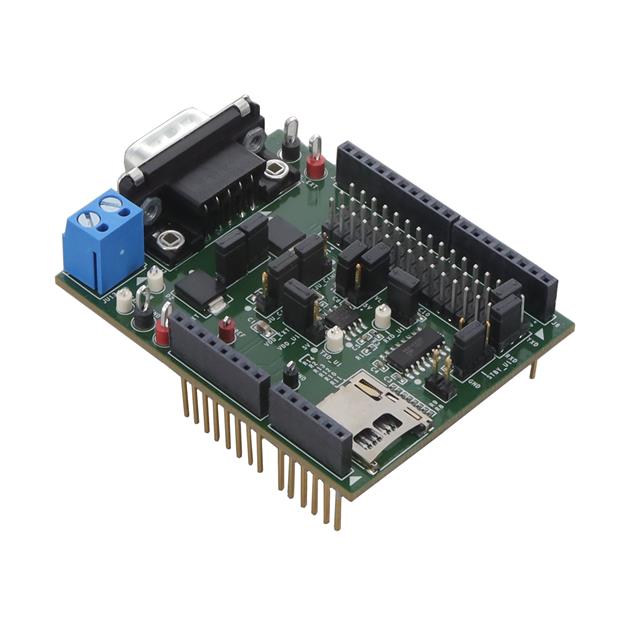

MAX13054A CANbus Interface Arduino Platform Evaluation Expansion Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

IC TRANSCEIVER FULL 1/1 8SOIC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Duplex	Data Rate	Type	Receiver Hysteresis	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Protocol	Utilized IC / Part	Function	Platform	Contents
Analog Devices Inc./Maxim Integrated MAX13054ASA+T	125 °C	-40 °C	Full	1 Mbps	Transceiver	70 mV	4.75 V	5.25 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	Surface Mount	CANbus
Analog Devices Inc./Maxim Integrated MAX13054ESA-T	85 °C	-40 °C	Full	1 Mbps	Transceiver	70 mV	4.75 V	5.25 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	Surface Mount	CANbus
Analog Devices Inc./Maxim Integrated MAX13054ASA+	125 °C	-40 °C	Full	1 Mbps	Transceiver	70 mV	4.75 V	5.25 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	Surface Mount	CANbus
Analog Devices Inc./Maxim Integrated MAX13054ESA	85 °C	-40 °C	Full	1 Mbps	Transceiver	70 mV	4.75 V	5.25 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	Surface Mount	CANbus
Analog Devices Inc./Maxim Integrated MAX13054AESHLD#					Interface										MAX13054A	CANbus	Arduino	Board(s)
Analog Devices Inc./Maxim Integrated MAX13054AEASA+T	125 °C	-40 °C	Full	1 Mbps	Transceiver	70 mV	4.75 V	5.25 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	Surface Mount	CANbus
Analog Devices Inc./Maxim Integrated MAX13054ESA+T	85 °C	-40 °C	Full	1 Mbps	Transceiver	70 mV	4.75 V	5.25 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	Surface Mount	CANbus
Analog Devices Inc./Maxim Integrated MAX13054AEASA+	125 °C	-40 °C	Full	1 Mbps	Transceiver	70 mV	4.75 V	5.25 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	Surface Mount	CANbus
