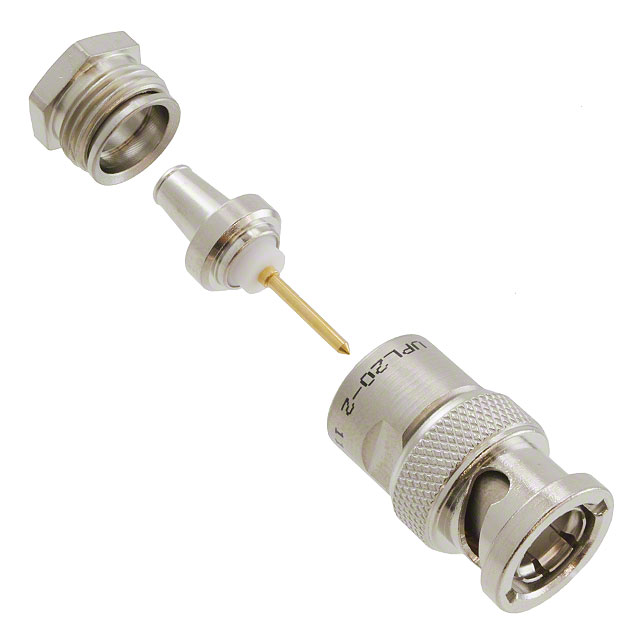

UPL20-2

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 75 OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 75 OHM CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPL20-2	UPL20 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	RG-59	RG-59
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp, Solder
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature	-	-65 ░C
Operating Temperature	-	165 °C
Shield Termination	Wrench Clamp	Wrench Clamp
Voltage Rating	-	500 V

CONN BNC PLUG STR 75 OHM CRIMP

Part	Center Contact Plating	Mounting Type	Body Material	Shield Termination	Housing Color	Contact Termination	Cable Group	Number of Ports	Frequency - Max [Max]	Connector Type	Connector Style	Fastening Type	Impedance	Body Finish	Dielectric Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]
Cinch Connectivity Solutions Trompeter UPL20-2	Gold	Free Hanging (In-Line)	Brass	Wrench Clamp	Silver	Crimp	RG-59	1	4 GHz	Male Pin, Plug	BNC	Bayonet Lock	75 Ohms	Nickel
Cinch Connectivity Solutions Trompeter UPL20-6A	Gold	Free Hanging (In-Line)	Brass	Wrench Clamp	Silver	Solder		1	4 GHz	Male Pin, Plug	BNC	Bayonet Lock	75 Ohms	Nickel	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.30

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
