13-56S

Active

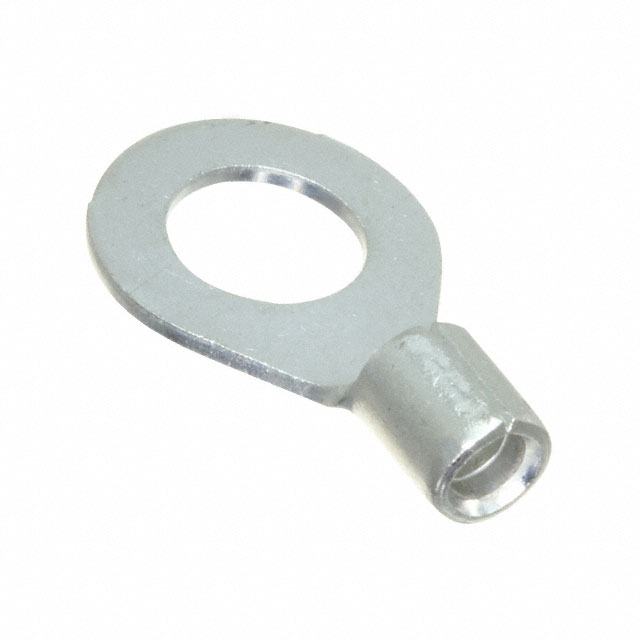

CONN RING CIRC 10-12AWG #5/16

Search across all available documentation for this part.

Active

CONN RING CIRC 10-12AWG #5/16

Technical Specifications

Parameters and characteristics for this part

CONN RING CIRC 10-12AWG #5/16

Part	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Width - Outer Edges [y]	Width - Outer Edges	Thickness	Thickness	Stud/Tab Size	Contact Finish	Features	Insulation	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material
3M 13-56S	Free Hanging (In-Line)	12 AWG	10 AWG	Circular	0.53 in	13.46 mm	0.04 in	1.02 mm	0.3125 Stud	Tin	Butted Seam	Non-Insulated	Crimp	0.96 "	24.38 mm	Copper, ETP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.13

General part information

Ring Terminal Connector 5/16 Stud Circular 10-12 AWG Crimp

Technical documentation and resources

No documents available
