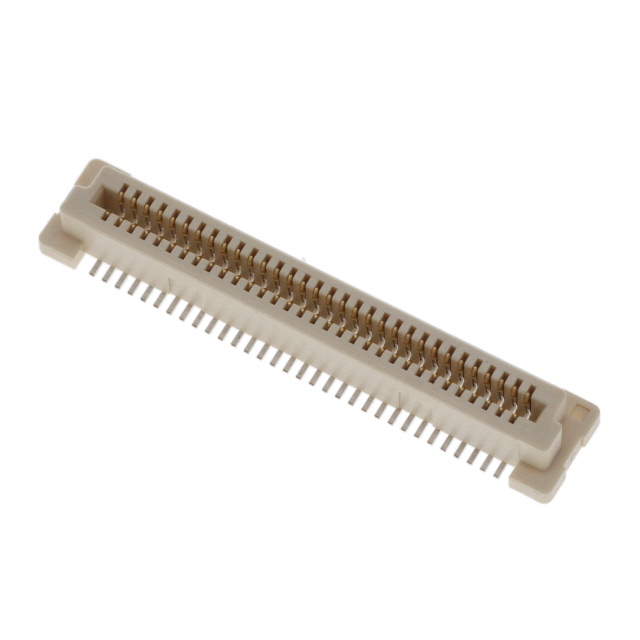

10135583-641402LF
ActiveAmphenol ICC (FCI)
CONN RCPT 64POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
10135583-641402LF
ActiveAmphenol ICC (FCI)
CONN RCPT 64POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10135583-641402LF |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Board Guide |
| Height Above Board | 3.7 mm |
| Height Above Board | 0.146 in |
| Mated Stacking Heights | 8 mm, 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.62 | |
| 10 | $ 2.00 | |||
| 100 | $ 1.54 | |||
| Digi-Reel® | 1 | $ 2.62 | ||
| 10 | $ 2.00 | |||
| 100 | $ 1.54 | |||
| Tape & Reel (TR) | 800 | $ 1.24 | ||
| 1600 | $ 1.15 | |||
| 2400 | $ 1.11 | |||
| 4000 | $ 1.06 | |||
| 5600 | $ 1.02 | |||
| 8000 | $ 1.00 | |||
Description
General part information
10135583 Series
64 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
