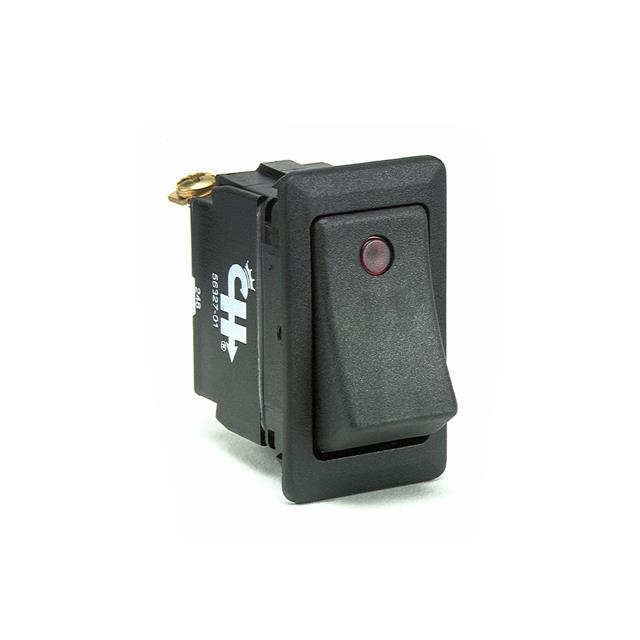

56327-01

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	56327-01

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	25 A
Illumination Type, Color	Incandescent, Red
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP66
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

SWITCH ROCKER SPST 25A 12V

Part	Illumination Type, Color	Circuit	Color - Actuator/Cap	Voltage Rating - DC	Termination Style	Illumination Voltage (Nominal)	Current Rating (Amps)	Actuator Type	Actuator Marking	Ingress Protection	Switch Function	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
Cole Hersee 56327-01	Incandescent, Red	SPST	Black	12 V	Screw Terminal	12 VDC	25 A	Concave (Curved) - Illuminated	No Marking	IP66	On-Off	Panel Mount, Snap-In	21.08 mm	36.83 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 12.04

General part information

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In
