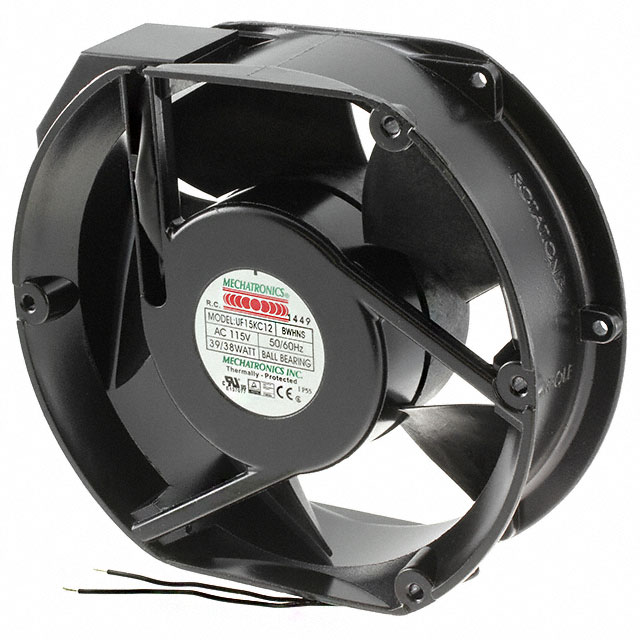

UF15KC23-BWHR

Active

Mechatronics Bearing Group

FAN AXIAL 172X150X55MM 230VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet +1

UF15KC23-BWHR

Active

Mechatronics Bearing Group

FAN AXIAL 172X150X55MM 230VAC

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF15KC23-BWHR

Air Flow	293 CFM
Air Flow	8.2 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.17 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	60 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	38 W
RPM	3400 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	0.9 in H2O
Static Pressure	224.2 Pa
Termination	3 Wire Leads
Voltage - Rated	230 VAC
Weight	1 kg
Weight	2.3 lbs
Width [y]	55 mm

UF15K Series

Part	Noise	RPM	Weight	Weight	Power (Watts)	Approval Agency	Fan Type	Features	Voltage - Rated	Width [y]	Material - Frame	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Bearing Type	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Termination	Material - Blade	Current Rating (Amps)	Static Pressure	Static Pressure	Air Flow	Air Flow	Termination	Ingress Protection
Mechatronics Bearing Group UF15KMR23-BTHR-F	61 dB(A)	3250 RPM	2.4 lbs	1.1 kg	45 W	CE cUL TUV UL	Tubeaxial	Reverse Air Flow Thermal Overload Protector (TOP)	230 VAC	55 mm	Aluminum	-40 °C	-40 °C	90 °C	90 °C	Ball	Rectangular/Rounded	150 mm	172 mm	2 Terminals	Metal	0.38 A	124.5 Pa	0.5 in H2O	7.14 mł/min	255 CFM
Mechatronics Bearing Group UF15KC12-BWHR	60 dB(A)	3400 RPM	2.3 lbs	1 kg	38 W	CE cUL TUV UL	Tubeaxial	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	115 VAC	55 mm	Aluminum	-40 °C	-40 °C	70 °C	70 °C	Ball	Rectangular/Rounded	150 mm	172 mm	3 Wire Leads	Polybutylene Terephthalate (PBT)	0.34 A	224.2 Pa	0.9 in H2O	8.2 m³/min	293 CFM
Mechatronics Bearing Group UF15KC12-BWHR-B1	60 dB(A)	3400 RPM	2.3 lbs	1 kg	38 W	CE cUL TUV UL	Tubeaxial	Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP)	115 VAC	55 mm	Aluminum	-40 °C	-40 °C	70 °C	70 °C	Ball	Rectangular/Rounded	150 mm	172 mm	5 Wire Leads	Polybutylene Terephthalate (PBT)	0.34 A	224.2 Pa	0.9 in H2O	8.2 m³/min	293 CFM
Mechatronics Bearing Group UF15KM12-BTHR-F-B1	53 dB	3250 RPM	2.4 lbs	1.1 kg	42 W	CE cUL TUV UL	Tubeaxial	Speed Sensor (Tach) Thermal Overload Protector (TOP)	115 VAC	55 mm	Aluminum	-40 °C	-40 °C	90 °C	90 °C	Ball	Rectangular/Rounded	150 mm	172 mm		Metal	0.47 A	156.9 Pa	0.63 in H2O	6.44 m³/min	230 CFM	3 Terminals
Mechatronics Bearing Group UF15KC23-BTHNR	60 dB(A)	3400 RPM	2.3 lbs	1 kg	38 W	CE cUL TUV UL	Tubeaxial	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	230 VAC	55 mm	Aluminum	-40 °C	-40 °C	70 °C	70 °C	Ball	Rectangular/Rounded	150 mm	172 mm		Polybutylene Terephthalate (PBT)	0.17 A	224.2 Pa	0.9 in H2O	8.2 m³/min	293 CFM	3 Terminals	IP55 - Dust Protected Water Resistant
Mechatronics Bearing Group UF15KC12-BWHNSR	60 dB(A)	3400 RPM	2.3 lbs	1 kg	38 W	CE cUL TUV UL	Tubeaxial	Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP)	115 VAC	55 mm	Aluminum	-40 °C	-40 °C	70 °C	70 °C	Ball	Rectangular/Rounded	150 mm	172 mm	4 Wire Leads	Polybutylene Terephthalate (PBT)	0.34 A	224.2 Pa	0.9 in H2O	8.2 m³/min	293 CFM		IP55 - Dust Protected Water Resistant
Mechatronics Bearing Group UF15KC12-BWHNSR-B1	60 dB(A)	3400 RPM	2.3 lbs	1 kg	38 W	CE cUL TUV UL	Tubeaxial	Permanent Split Capacitor Motor Salt Fog Rated Speed Sensor (Tach) Thermal Overload Protector (TOP)	115 VAC	55 mm	Aluminum	-40 °C	-40 °C	70 °C	70 °C	Ball	Rectangular/Rounded	150 mm	172 mm		Polybutylene Terephthalate (PBT)	0.34 A	224.2 Pa	0.9 in H2O	8.2 m³/min	293 CFM	5 Terminals	IP55 - Dust Protected Water Resistant
Mechatronics Bearing Group UF15KM23-BTHR-F	53 dB	3250 RPM	2.4 lbs	1.1 kg	42 W	CE cUL TUV UL	Tubeaxial	Thermal Overload Protector (TOP)	230 VAC	55 mm	Aluminum	-40 °C	-40 °C	90 °C	90 °C	Ball	Rectangular/Rounded	150 mm	172 mm	2 Terminals	Metal	370 mA	156.9 Pa	0.63 in H2O	6.44 m³/min	230 CFM
Mechatronics Bearing Group UF15KC23-BTHR-B2	60 dB(A)	3400 RPM	2.3 lbs	1 kg	38 W	CE cUL TUV UL	Tubeaxial	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	230 VAC	55 mm	Aluminum	-40 °C	-40 °C	70 °C	70 °C	Ball	Rectangular/Rounded	150 mm	172 mm		Polybutylene Terephthalate (PBT)	0.17 A	224.2 Pa	0.9 in H2O	8.2 m³/min	293 CFM	3 Terminals
Mechatronics Bearing Group UF15KM12-BWHR-F	53 dB	3250 RPM	2.4 lbs	1.1 kg	42 W	CE cUL TUV UL	Tubeaxial	Thermal Overload Protector (TOP)	115 VAC	55 mm	Aluminum	-40 °C	-40 °C	90 °C	90 °C	Ball	Rectangular/Rounded	150 mm	172 mm	2 Wire Leads	Metal	750 mA	156.9 Pa	0.63 in H2O	6.44 m³/min	230 CFM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.17
		12	$ 45.82
		27	$ 44.08

Description

General part information

UF15K Series

Fan Tubeaxial 230VAC Rectangular/Rounded - 172mm L x 150mm H Ball 293.0 CFM (8.20m³/min) 3 Wire Leads

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet
