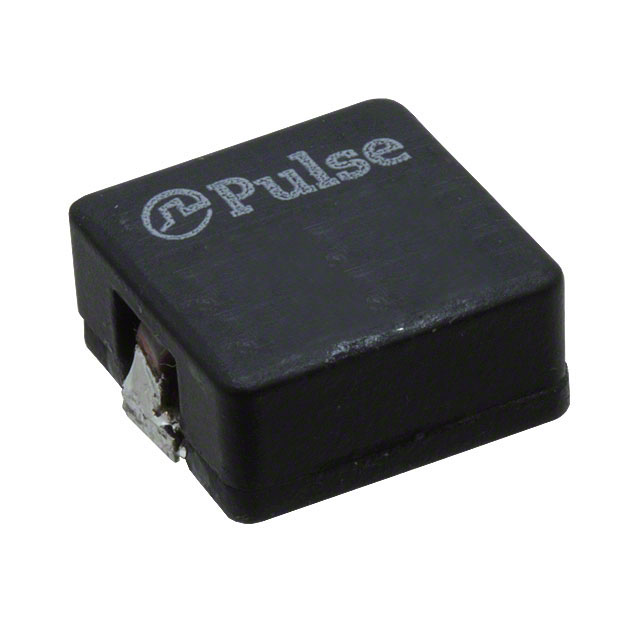

PG0077.401NLT
ActivePulse Electronics
FIXED IND 450NH 45A 0.8 MOHM SMD
PG0077.401NLT
ActivePulse Electronics
FIXED IND 450NH 45A 0.8 MOHM SMD
Description
General part information
PG0077.401NLT
450 nH Unshielded Inductor 45 A 0.8mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PG0077.401NLT |
|---|---|
| Current - Saturation (Isat) | 48 A |
| Current Rating | 45 A |
| DC Resistance (DCR) (Max) | 0.8 mOhm |
| Height - Seated (Max) | 0.256 in |
| Inductance | 450 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.551 in |
| Size / Dimension Width | 0.512 in |
| Tolerance | 20 % |
