CF9-UL-15-07
ActiveIgus

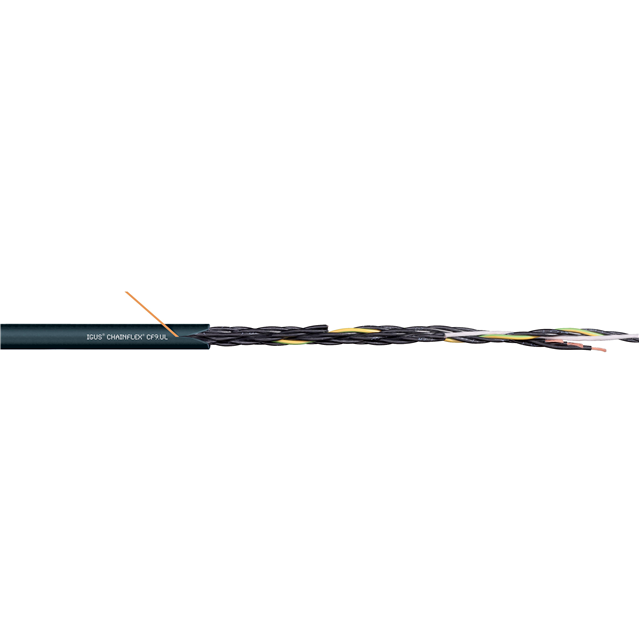

CABLE 7COND 16AWG SLATE 1=1FT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF9-UL-15-07
ActiveIgus
CABLE 7COND 16AWG SLATE 1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF9-UL-15-07 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant, Oil Resistant, Abrasion Resistant, Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 11.51 mm |
| Jacket (Insulation) Diameter [diameter] | 0.453 " |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket Color | Slate |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 7 |
| Usage | Industrial, Control |
| Voltage | 1000 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.52 | |
| 100 | $ 7.23 | |||
| 500 | $ 6.94 | |||
| 1000 | $ 6.06 | |||
Description
General part information
CF9.UL Series
7 Conductor Multi-Conductor Cable Slate 16 AWG Enter Number of Feet in Order Quantity
