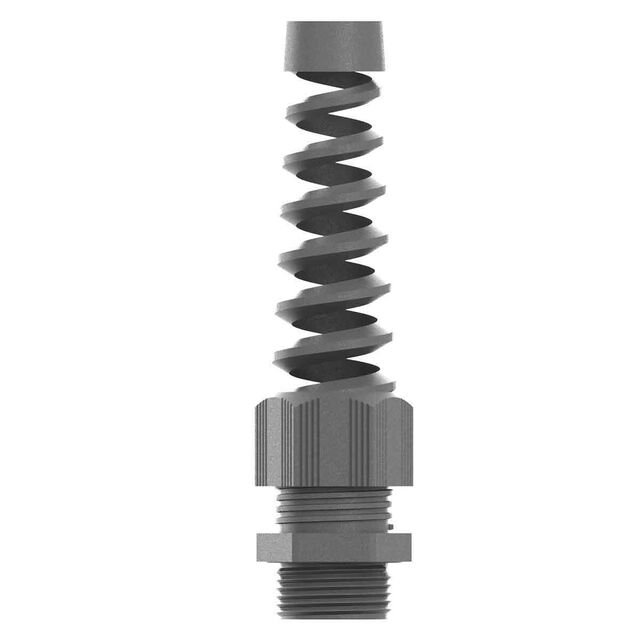

FNG-3/8

Active

SAB North America

CABLE GLAND 5-10MM 3/8" NPT

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 5-10MM 3/8" NPT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FNG-3/8	FNG-3 Series

Color	Gray	Black, Gray
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "	0.394 - 0.63 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm	10 - 16 mm
Outside Cable Diameter (Min)	-	9 mm
Outside Cable Diameter (Min)	-	0.354 in
Outside Cable Diameter (Min) [Min]	5 mm	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in	0.197 in
Panel Hole Size	0.675 in	0.675 - 1.05 in
Panel Hole Size	17.2 mm	17.2 - 26.7 mm
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	3/8" NPT	3/4 NPT, 3/8" NPT
Type	Cable Gland	Cable Gland

CABLE GLAND 9-16MM 3/4" NPT

Part	Thread Length	Thread Length	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Thread Size	Ingress Protection	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
SAB North America FNG-3/4R	0.591 in	15 mm	Cable Gland	0.63 "	16 mm	9 mm	0.354 in	100 °C	-20 C	Black	3/4 NPT	IP68 - Dust Tight, Waterproof	1.05 in	26.7 mm
SAB North America FNG-3/8	0.591 in	15 mm	Cable Gland	0.394 "	10 mm			100 °C	-20 C	Gray	3/8" NPT	IP68 - Dust Tight, Waterproof	0.675 in	17.2 mm	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 3/8" NPT Gray
