1557 WO001

Active

ALPHA WIRE

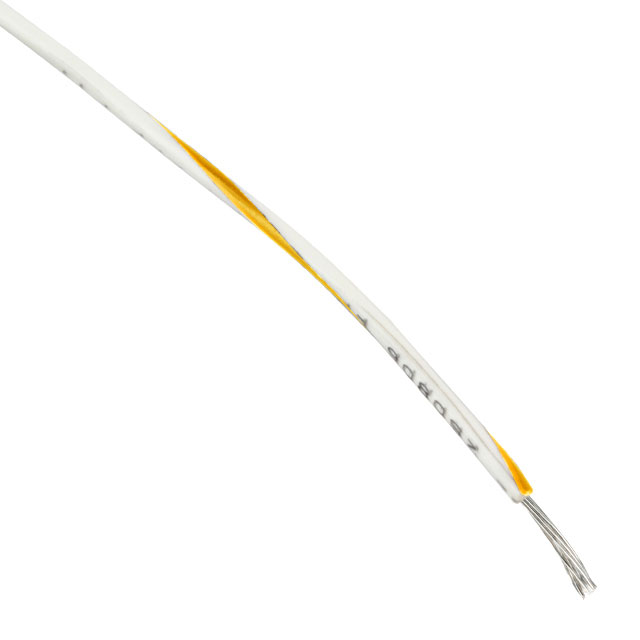

HOOKUP STRND 16AWG WHT/ORG 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAlpha Wire Print Notification Hook-Up Wire Catalog

1557 WO001

Active

ALPHA WIRE

HOOKUP STRND 16AWG WHT/ORG 1000'

Deep-Dive with AI

DocumentsAlpha Wire Print Notification Hook-Up Wire Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 567.90
		3	$ 529.18
		5	$ 500.14
		10	$ 474.33
		25	$ 419.47

Description

General part information

1557 Series

16 AWG Hook-Up Wire 26/30 White, Orange Stripe 1000V 1000.0' (304.8m)

Documents

Technical documentation and resources

Alpha Wire Print Notification

Hook-Up Wire Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1557 WO001	1557 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	30 AWG	30 AWG
Conductor Strand [custom]	26	26
Jacket (Insulation) Diameter [diameter]	0.092 in	0.092 in
Jacket (Insulation) Diameter [diameter]	2.34 mm	2.34 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in	0.016 in
Jacket (Insulation) Thickness	0.41 mm	0.41 mm
Jacket Color	White, Orange Stripe	Red, White, Violet Stripe, Slate, Orange, Green, Brown, White, Gray Stripe, Yellow, White, Black Stripe, Violet, White, Orange Stripe, White, Brown Stripe
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Qualification	MIL-W-76B Type MW	MIL-W-76B Type MW
Voltage	1000 V	1000 V
Wire Gauge	16 AWG	16 AWG

1557 Series

HOOK-UP STRND 16AWG RED 1000'

Part	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Material	Voltage	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 1557 RD001	1000 ft	304.8 m	0.092 in	2.34 mm	16 AWG	Copper, Tinned	1000 V	MIL-W-76B Type MW	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Hook-Up	30 AWG	26	0.016 in	0.41 mm	Red
ALPHA WIRE 1557 WV005			0.092 in	2.34 mm	16 AWG	Copper, Tinned	1000 V	MIL-W-76B Type MW	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Hook-Up	30 AWG	26	0.016 in	0.41 mm	White, Violet Stripe	30.5 m	100 ft
ALPHA WIRE 1557 SL005			0.092 in	2.34 mm	16 AWG	Copper, Tinned	1000 V	MIL-W-76B Type MW	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Hook-Up	30 AWG	26	0.016 in	0.41 mm	Slate	30.5 m	100 ft
ALPHA WIRE 1557 WH001	1000 ft	304.8 m	0.092 in	2.34 mm	16 AWG	Copper, Tinned	1000 V	MIL-W-76B Type MW	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Hook-Up	30 AWG	26	0.016 in	0.41 mm
ALPHA WIRE 1557 OR001	1000 ft	304.8 m	0.092 in	2.34 mm	16 AWG	Copper, Tinned	1000 V	MIL-W-76B Type MW	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Hook-Up	30 AWG	26	0.016 in	0.41 mm	Orange
ALPHA WIRE 1557 OR005			0.092 in	2.34 mm	16 AWG	Copper, Tinned	1000 V	MIL-W-76B Type MW	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Hook-Up	30 AWG	26	0.016 in	0.41 mm	Orange	30.5 m	100 ft
ALPHA WIRE 1557 GR005			0.092 in	2.34 mm	16 AWG	Copper, Tinned	1000 V	MIL-W-76B Type MW	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Hook-Up	30 AWG	26	0.016 in	0.41 mm	Green	30.5 m	100 ft
ALPHA WIRE 1557 BR001	1000 ft	304.8 m	0.092 in	2.34 mm	16 AWG	Copper, Tinned	1000 V	MIL-W-76B Type MW	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Hook-Up	30 AWG	26	0.016 in	0.41 mm	Brown
ALPHA WIRE 1557 GR001	1000 ft	304.8 m	0.092 in	2.34 mm	16 AWG	Copper, Tinned	1000 V	MIL-W-76B Type MW	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Hook-Up	30 AWG	26	0.016 in	0.41 mm	Green
ALPHA WIRE 1557 WS005			0.092 in	2.34 mm	16 AWG	Copper, Tinned	1000 V	MIL-W-76B Type MW	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Hook-Up	30 AWG	26	0.016 in	0.41 mm	White, Gray Stripe	30.5 m	100 ft
