Description
General part information

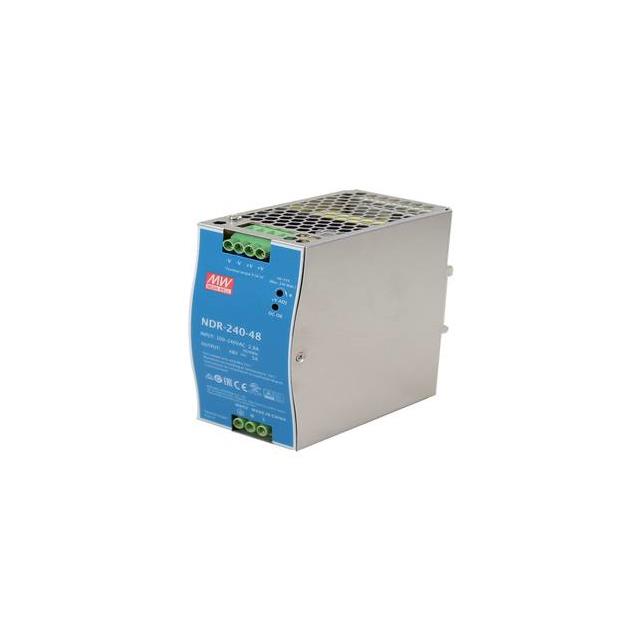

NDR-240-48
AC/DC CONVERTER 48V 240W
Technical Specifications
Parameters and characteristics for this part
| Specification | NDR-240-48 |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | EAC, TUV, KC, UKCA, CE, CB, PSE, cULus |
| Efficiency | 90 % |
| Features | PFC, DC Input Capable, Adjustable Output, Universal Input |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 240 W |
| Size / Dimension Height | 4.93 in |
| Size / Dimension Length | 4.47 in |
| Size / Dimension Width | 2.48 in |
| Standard Number | UL 508, 60950-1, 62368-1 |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48 V |
