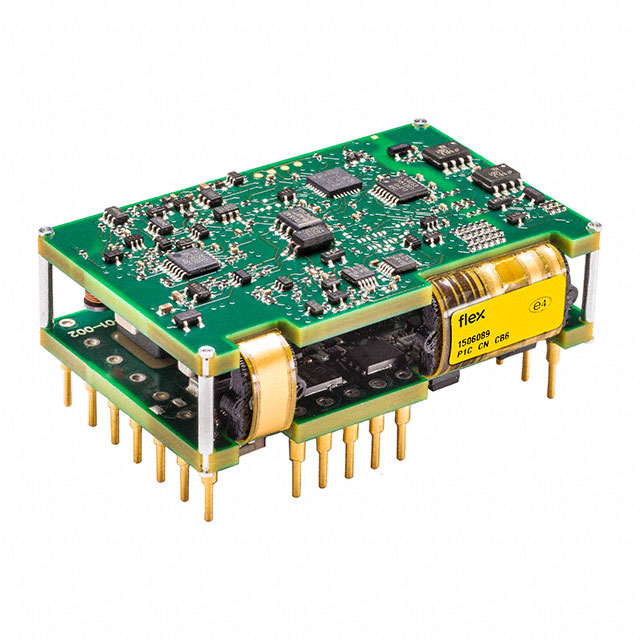

PIM4710PDA

Active

Flex Power Modules

DC DC CONVERTER 3.6V 25W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 3.6V 25W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 3.6V 25W

Part	Applications	Package / Case	Type	Features	Voltage - Output 1	Number of Outputs	Voltage - Input (Max) [Max]	Supplier Device Package	Approval Agency	Voltage - Input (Min) [Min]	Efficiency	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Standard Number	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Current - Output (Max)
Flex Power Modules PIM4710PDA	ITE (Commercial)	Quarter Brick	Isolated Module	PMBus™	3.6 V	1	75 V	Quarter Brick	CB, CSA, IEC, TUV, UL	36 V	98.8 %	2000 V	-40 °C	105 C	25 W	62368-1	1.45 in	36.8 mm	2.28 in	20.8 mm	57.9 mm	0.82 in	Through Hole	7 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 3.6V 7A 36V - 75V Input
