1190424
LTBPhoenix Contact
IP66 TOUCH PANEL WITH 21.5-INCH
1190424
LTBPhoenix Contact
IP66 TOUCH PANEL WITH 21.5-INCH
Description
General part information
1190424

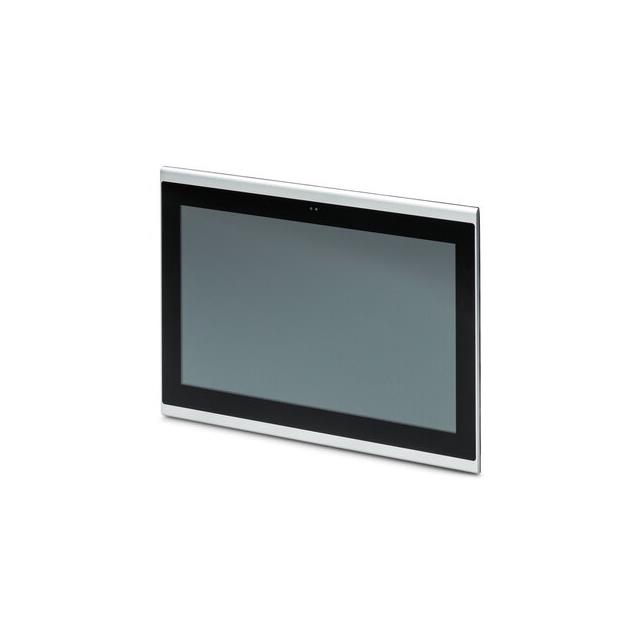

Human Machine Interface (HMI) Touchscreen 21.5" Color
Technical Specifications
Parameters and characteristics for this part
| Specification | 1190424 |
|---|---|
| Case Color | Gray |
| Display Size | 21.5 in |
| Display Type | Color |
| Features | Memory Card Interface, Expansion Interface |
| For Use With/Related Products | Multiple Manufacturer, Multiple Product |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Type | Touchscreen |
| Voltage - Supply | 24 VDC |
