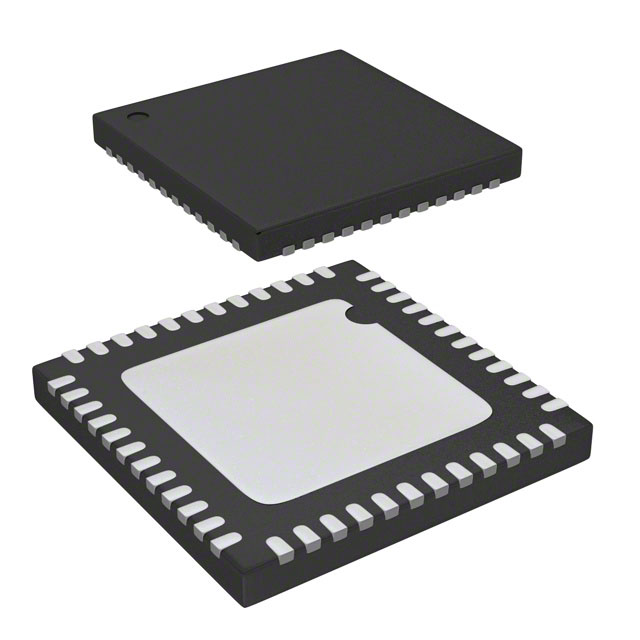

STSPIN32F0ATR
ActiveADVANCED BLDC CONTROLLER WITH EMBEDDED STM32 MCU
Deep-Dive with AI
Search across all available documentation for this part.
STSPIN32F0ATR
ActiveADVANCED BLDC CONTROLLER WITH EMBEDDED STM32 MCU
Deep-Dive with AI
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.75 | |
| 10 | $ 2.83 | |||
| 25 | $ 2.60 | |||
| 100 | $ 2.34 | |||
| 250 | $ 2.22 | |||
| 500 | $ 2.15 | |||
| 1000 | $ 2.09 | |||
| Digi-Reel® | 1 | $ 3.75 | ||
| 10 | $ 2.83 | |||
| 25 | $ 2.60 | |||
| 100 | $ 2.34 | |||
| 250 | $ 2.22 | |||
| 500 | $ 2.15 | |||
| 1000 | $ 2.09 | |||
| Tape & Reel (TR) | 2500 | $ 2.03 | ||
| 5000 | $ 1.99 | |||
Description
General part information
STSPIN32F0A Series
The STSPIN32F0A is a System-In-Package providing an integrated solution suitable for driving three-phase BLDC motors using different driving modes.
It embeds a triple half-bridge gate driver able to drive power MOSFETs with a current capability of 600 mA (sink and source). The high- and low-side switches of same half-bridge cannot be simultaneously driven high thanks to an integrated interlocking function.
An internal DC/DC buck converter provides the 3.3 V voltage suitable to supply both the MCU and external components. An internal LDO linear regulator provides the supply voltage for gate drivers.
