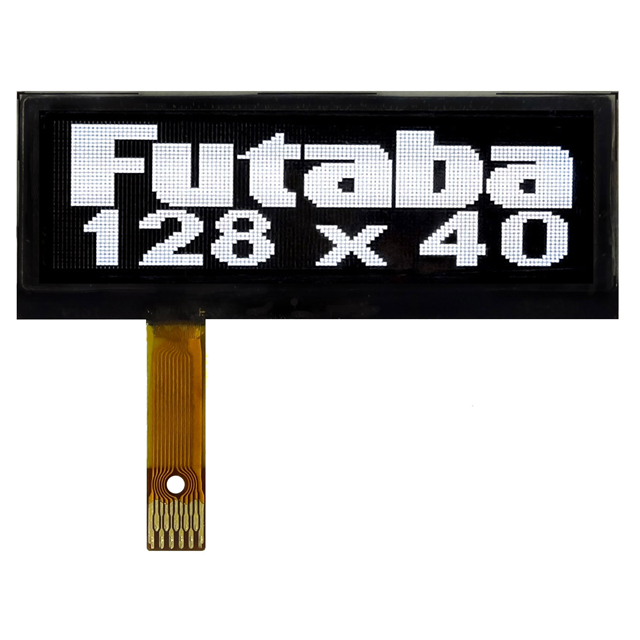

ELW1301AA
ActiveFutaba Corporation
128X40 WHITE, 1.3" OLED
ELW1301AA
ActiveFutaba Corporation
128X40 WHITE, 1.3" OLED
Description
General part information
ELW1301AA
Graphic LCD Display Module White OLED - Passive Matrix I2C, SPI 1.3" (33.02mm) 128 x 40
Technical Specifications
Parameters and characteristics for this part
| Specification | ELW1301AA |
|---|---|
| Diagonal Screen Size | 1.3 in |
| Display Type | OLED - Passive Matrix |
| Dot Pitch Height | 0.22 mm |
| Dot Pitch Width | 0.25 mm |
| Dot Pixels (Horizontal) | 128 pixels |
| Dot Pixels (Vertical) | 40 pixels |
| Graphics Color | White |
| Interface | I2C, SPI |
| Viewing Area Height | 8.65 mm |
| Viewing Area Width | 31.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
