TJA1145A-EVB
ActiveNXP USA Inc.
EVAL BOARD FOR TJA1145A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TJA1145A-EVB
ActiveNXP USA Inc.
EVAL BOARD FOR TJA1145A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TJA1145A-EVB | TJA1145 Series |
|---|---|---|
| Data Rate | - | 5 MBd |
| Duplex | - | Full |
| Embedded | Yes, MCU | Yes, MCU |
| Function | CAN Transceiver | CAN Transceiver |
| Grade | - | Automotive |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 150 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 0.154 in |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 14-SOIC, 14-VDFN Exposed Pad |
| Primary Attributes | 12V Power Supply | 12V Power Supply |
| Protocol | - | CANbus |
| Qualification | - | AEC-Q100 |
| Receiver Hysteresis | - | 200 - 800 mV |
| Supplied Contents | Cable(s), Power Supply, Board(s) | Cable(s), Power Supply, Board(s) |
| Supplier Device Package | - | 14-SO, 14-HVSON |
| Supplier Device Package | - | 4.5 |
| Supplier Device Package | - | 3 |
| Type | Interface | Transceiver, Interface |
| Utilized IC / Part | TJA1145A | TJA1145A |
| Voltage - Supply | - | 4.5 V |
| Voltage - Supply | - | 5.5 V |
TJA1145 Series
IC TRANSCEIVER FULL 1/1 14SO
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Protocol | Data Rate | Package / Case [x] | Package / Case [y] | Package / Case | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Qualification | Receiver Hysteresis | Duplex | Type | Grade | Mounting Type | Function | Primary Attributes | Supplied Contents | Embedded | Utilized IC / Part | Supplier Device Package [y] | Supplier Device Package [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NXP USA Inc. TJA1145AT/0Z | 150 °C | -40 °C | CANbus | 5 MBd | 0.154 in | 3.9 mm | 14-SOIC | 14-SO | 4.5 V | 5.5 V | AEC-Q100 | 800 mV | Full | Transceiver | Automotive | Surface Mount | |||||||
NXP USA Inc. TJA1145A-EVB | Interface | CAN Transceiver | 12V Power Supply | Board(s), Cable(s), Power Supply | Yes, MCU | TJA1145A | |||||||||||||||||
NXP USA Inc. TJA1145T/FDJ | CANbus | 0.154 in | 3.9 mm | 14-SOIC | 14-SO | 4.5 V | 5.5 V | 200 mV | Full | Transceiver | Surface Mount | ||||||||||||
NXP USA Inc. TJA1145ATK/0Z | 150 °C | -40 °C | CANbus | 5 MBd | 14-VDFN Exposed Pad | 14-HVSON | 4.5 V | 5.5 V | AEC-Q100 | 800 mV | Full | Transceiver | Automotive | Surface Mount | 4.5 | 3 | |||||||
NXP USA Inc. TJA1145T,118 | CANbus | 0.154 in | 3.9 mm | 14-SOIC | 14-SO | 4.5 V | 5.5 V | Full | Transceiver | Surface Mount | |||||||||||||
NXP USA Inc. TJA1145AT/FD/0Z | 150 °C | -40 °C | CANbus | 5 MBd | 0.154 in | 3.9 mm | 14-SOIC | 14-SO | 4.5 V | 5.5 V | AEC-Q100 | 800 mV | Full | Transceiver | Automotive | Surface Mount | |||||||
NXP USA Inc. TJA1145ATK/FD/0Z | 150 °C | -40 °C | CANbus | 5 MBd | 14-VDFN Exposed Pad | 14-HVSON | 4.5 V | 5.5 V | AEC-Q100 | 800 mV | Full | Transceiver | Automotive | Surface Mount | 4.5 | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 88.05 | |
Description
General part information
TJA1145 Series

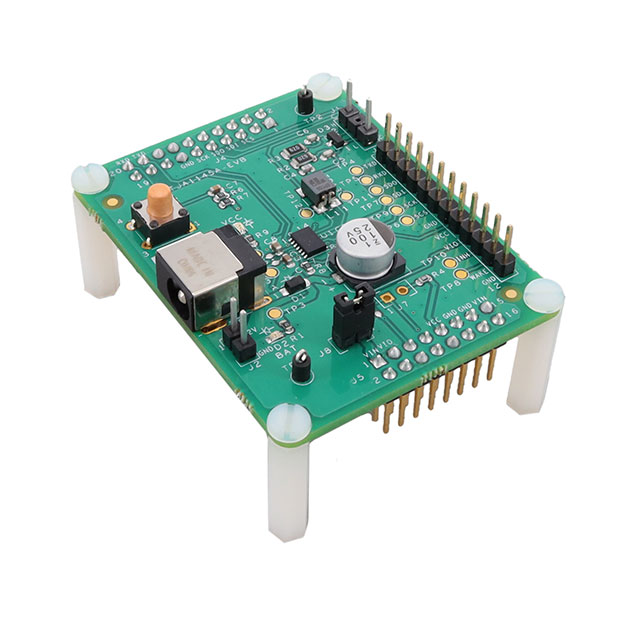

TJA1145A CAN Transceiver Interface Evaluation Board
